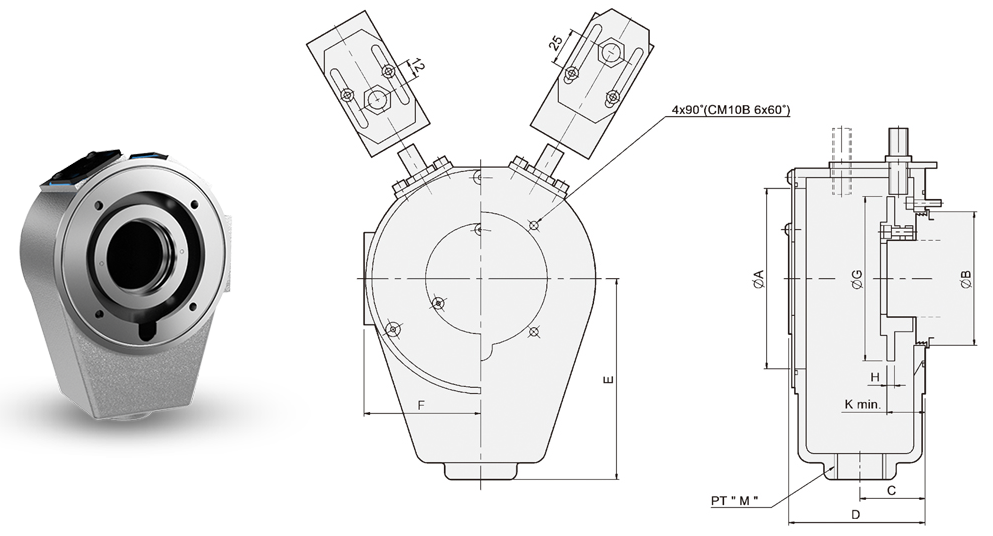

CM.B Hydraulic Cylinder

Hydraulic cylinder coolant collector
  • Hydraulic cylinders coolant collectors. Compact and light weight, they feature bore sizes up to 20% large than Conventional Cylinders. Precision finished piston bores and cool running rotary unions are included for years of trouble-free performance.
  • The proximity switches are extra option.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
A B C D E F G J L
max.
L
min.
N P S T M H1 K1 Q1 Reference Matching
Cylinder
Weight
(kg)
DIM Part Number Price Each
82.5 30 35 71.5 106 55.5 77 5 47.5 17.5 30 67 90 105 PT 3/4" 76 44 4-M4 Fig2 M0928 0.85 CM09B Call or Email
82.5 40 35 71.5 106 55.5 107 5 47.5 17.5 30 75 --- 105 PT 3/4" 88 44 6-M5 Fig1 M1036 1.0 CM10B1 Call or Email
117.5 48 42 85.5 142 74 107 5 60.5 17.5 30 87 --- 130 PT 1" 98 47 4-M5 Fig1 M1236, M1246, MK1246, MM1246A 1.6 CM12B Call or Email
117.5 55 42 85.5 142 74 107 5 60.5 17.5 30 98 --- 130 PT 1" 110 47 4-M6 Fig1 M1546, M1552, MK1452 1.6 CM15B8 Call or Email
155 80 42.5 86.5 184 94 147 5 58.5 17.5 30 123 --- 150 PT 1" 155 47 4-M6 Fig1 M1868, M1875 2.0 CM18B Call or Email
155 80 42.5 86.5 184 94 147 5 60.5 19.5 30 126 175 150 PT 1" 166 47 4-M6 Fig2 MK1881 2.0 CM18BK Call or Email
155 95 42.5 86.5 184 94 147 5 60.5 17.5 30 140 --- 150 PT 1" 165 47 4-M6 Fig1 M2091 2.1 CM20B Call or Email
200 120 44 89.5 230 117 192 12 60 21 27 179 --- 180 PT 1" 206 47 4-M6 Fig1 M2511 2.4 CM25B Call or Email
254 170 52 103 285 147 240 8 74.5 20.5 20 222.6 278 260 PT 1-1/4" 256 85 4-M6 Fig2 ML2816 4.2 CM28B Call or Email
300 208 52 101.5 330 --- 285 8 74.5 20.5 20 262.6 328 259 PT 1-1/4" 308 70 4-M6 Fig2 ML3320 7.2 CM33B Call or Email
