CRA Collet Chuck

Collet chuck for short taper mount
  • Collet chucks with bayonet catch are mainly used for chucking bar
  • work on NC / CNC lathes.
  • The bar can be fed in through the chuck.
    Profiles can also be chucked with the appropriate collets.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Matching
Spindle		 Bar Capacity
(mm)		 Sleeve stroke
(mm)
(mm)		 Max. Push
Force
kN(kgf)		 Max.
Gripping
Force
kN(kgf)		 Max.
Speed
(r.p.m.)		 Weight
(kg)		 SPEC Part Number Price Each
A2-4 26 5 20(2039) 44(4486) 7000 4.5 CR26A4 Call or Email
A2-4 30 5 20(2039) 44(4486) 7000 4.1 CR30A4 Call or Email
A2-5 42 7 25(2549) 55(5608) 6000 6.2 CR42A5 Call or Email
A2-6 42 7 25(2549) 55(5608) 6000 8.2 CR42A6 Call or Email
A2-6 60 7 30(3059) 65(6628) 5000 13 CR60A6 Call or Email
A2-8 80 7 35(3568) 73(7443) 4000 21 CR80A8 Call or Email

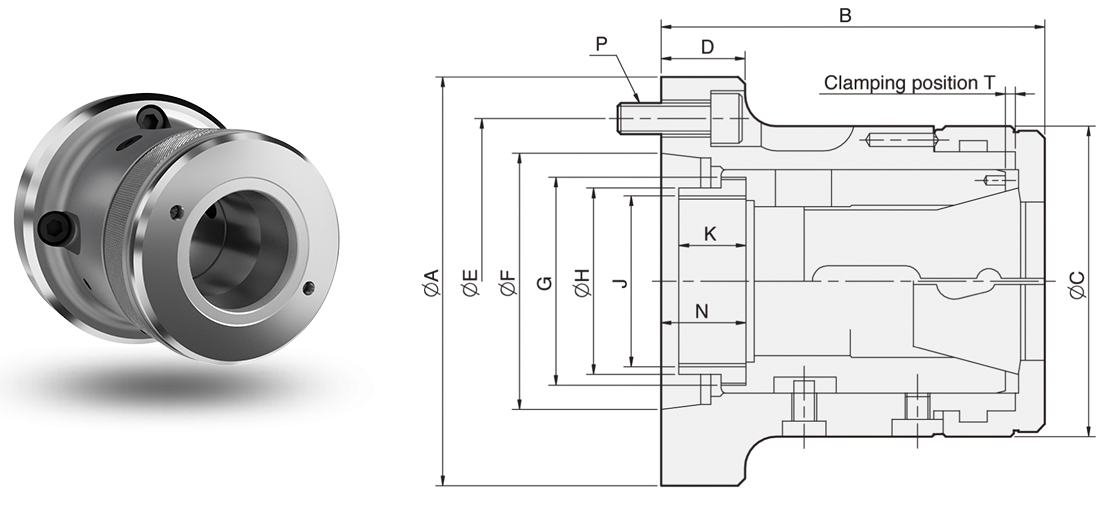

A B C D E F G H J
max.		 K N P T DIM Part Number Price Each
112 103.5 85 30 82.55 63.513 M50xP1.5 45 M40xP1.5 15 21.7 3-M10 2.3 CR26A4 Call or Email
112 103.5 85 30 82.55 63.513 M50xP1.5 45 M40xP1.5 15 21.7 3-M10 2.3 CR30A4 Call or Email
135 124 100 27 104.78 82.563 M66xP1.5 60 M55xP2.0 25 27.4 4-M10 3.1 CR42A5 Call or Email
170 124 100 32 133.35 106.375 M66xP1.5 66 M60xP2.0 22 27.4 4-M12 3.1 CR42A6 Call or Email
170 145 130 27 133.35 106.375 M90xP1.5 80 M74xP2.0 30 29.9 4-M12 3.1 CR60A6 Call or Email
220 170 156 35 171.45 139.719 M114xP2.0 99 M90xP2.0 27.5 32.4 6-M16 6.1 CR80A8 Call or Email
Capacities Chuck MULTIBORE SPRING COLLET
NO. Cat.No. Cat.No.
CR26 M-667 26 22 18 161E/8744 26 22 18
CR30 M-669 30 26 21 163E/4249 30 26 21
CR42 M-673 42 36 30 173E/4728 42 36 30
CR60 M-677 60 52 42 185E/4291 60 52 42
CR80 J-660 80 69 56 193E/H-47 80 69 56
*Uses the collet to DIN6343 specification.
