Haas Tool Blocks

Haas Tool Blocks

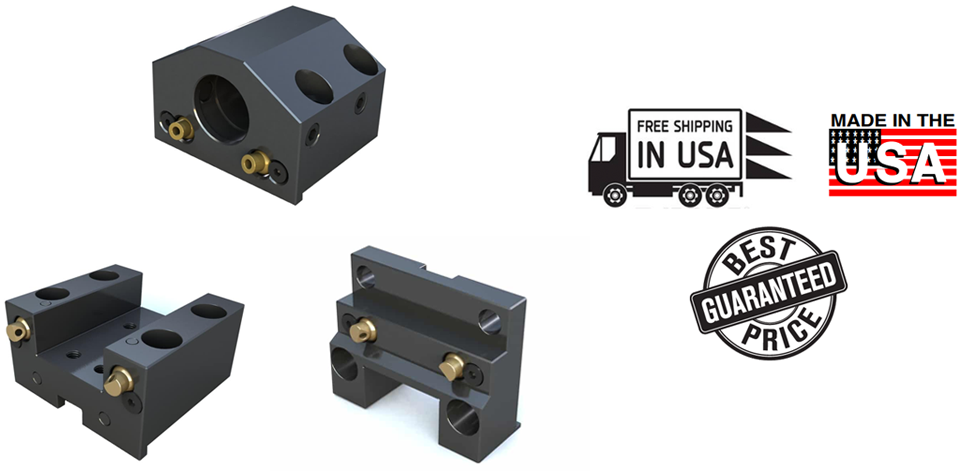

Tool Block Features
  • Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
  • Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
  • Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
  • Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
  • Components Included: Wedges, Coolant Nozzles and Set Screws.
  • Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
  • Made in the USA.
New Items
  • VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
  • ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
  • Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
  • More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bolt Hole Pattern:
64mm x 50mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
ST20, DS30, ST30SS 0.75" 40mm HST20-8420 HST20-8311A .75" Sq. HST20-8411A .75" Sq. CALL
1" 40mm HST20-8425 CALL
1.25" 40mm HST20-8432 CALL
1.5" 40mm HST20-8435 CALL
2" 40mm HST20-8436 CALL
Bolt Hole Pattern:
70mm x 45mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
SL-10, ST10, HT10 0.75" 1" HSL10-8420 HSL10-8311A .75" Sq. HSL10-8411A .75" Sq. CALL
1" 1" HSL10-8425 CALL
1.25" 1" HSL10-8432 CALL
1.5" 1" HSL10-8435 CALL
Bolt Hole Pattern:
80mm x 45mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
SL20, SL30, ST30, ST31, TL15, TL25 1" 1.25" HSL30-8425 HSL30-8311 1" Sq. HSL30-8411 1" Sq. CALL
1.25" 1.25" HSL30-8432 CALL
1.5" 1.25" HSL30-8435 CALL
1.75" 1.25" HSL30-8445 CALL
2" 1.35" HSL30-8436 CALL
2.5" 1.35" HSL30-8437 CALL
Bolt Hole Pattern:
105mm x 70mm
Machine Model		 I.D. Center
Height		 Part Number
Int. Coolant: Add -INT		 OD Turning
Type I		 OD Facing
Type II		 Price
SL-40 2" 1.625" HSL40-8436 HLS40-8311B 1.25" Sq. HSL40-8411B 1.25" Sq. CALL
2.5" 1.625" HSL40-8437 CALL
