Type CS Short Series Bushings

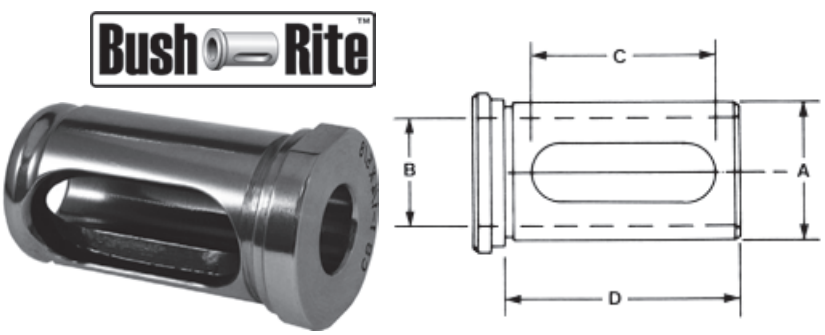

Similar to the “C” Style bushing, but with a shorter overall length. Designed for universal use on all CNC turning machines. To adapt a wide variety of boring bars, drills, reamers and shank type tools.
SPECIFICATIONS:
Material: ALLOY STEEL 8620
Hardness Data: Rc 55-57 for longer tool life Case Hardened and Ground Concentric OD & ID
Axial Concentricity: OD & ID- 0.002”
Tolerance: H6 & g6 in grinding the OD & ID To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
| A O.D. |
C Slot Length | D Length Under Head | B I.D. |
Part Number |
| 3/4” | 1-1/8” | 1-1/2” | 1/4” | TBCS-07-0250-B |
| 5/16” | TBCS-07-0312-B | |||
| 3/8” | TBCS-07-0375-B | |||
| 1/2” | TBCS-07-0500-B | |||
| 1” | 1-3/8” | 1-3/4” | 1/4” | TBCS-10-0250-B |
| 5/16” | TBCS-10-0312-B | |||
| 3/8” | TBCS-10-0375-B | |||
| 1/2” | TBCS-10-0500-B | |||
| 5/8” | TBCS-10-0625-B | |||
| 3/4” | TBCS-10-0750-B | |||
| 1-1/4” | 1-3/4”” | 2-1/8” | 3/8” | TBCS-12-0375-B |
| 1/2” | TBCS-12-0500-B | |||
| 5/8” | TBCS-12-0625-B | |||
| 3/4” | TBCS-12-0750-B | |||
| 7/8” | TBCS-12-0875-B | |||
| 1” | TBCS-12-1000-B | |||
| 1-1/2” | 2-1/8” | 2-1/2” | 3/8” | TBCS-15-0375-B |
| 1/2” | TBCS-15-0500-B | |||
| 5/8” | TBCS-15-0625-B | |||
| 3/4” | TBCS-15-0750-B | |||
| 7/8” | TBCS-15-0875-B | |||
| 1” | TBCS-15-1000-B | |||
| 1-1/4” | TBCS-15-1250-B |
