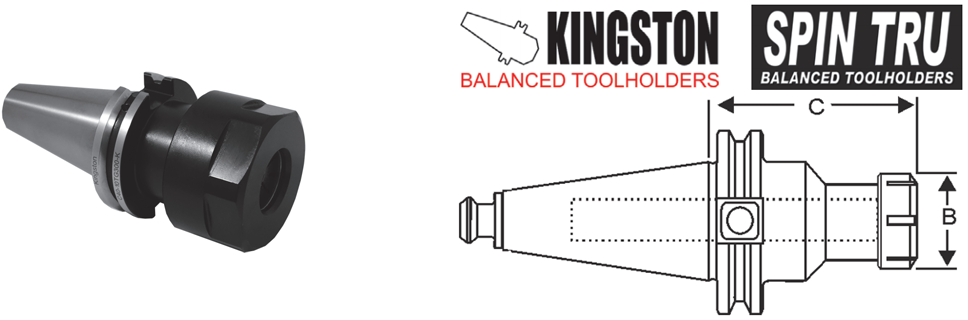

BT 30 TG Series Collet Chucks

TG SERIES COLLET CHUCKS
  • Kingston: Balanced to 15,000 RPM @ g6.3
  • Spin Tru: Balanced to 20,000 RPM @ g2.5
  • Manufactured to ISO9002 quality control standards
  • Each holder balanced on a HAIMER Balancing machine and includes certificate of individual inspection and balancing
  • Accuracy: 0.0002" TIR or better
  • Taper cone circularity per AT3 specifications .00006" or better
  • H5 bore tolerance for optimum surface contact with cutting tool
  • Thru-tool coolant feature is standard
  • Includes collet nut
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
C Proj. B Nut Dia. Nut Tight. Torque (ft.lbs.) Brand Part Number MAX RPM Balanced Up to Collet Nut Wrench Code
TG 100 TG-100 Collet Series-5/64 to 1" (2mm - 25.4mm)
4.50 2.44 60 Kingston B30-10TG450-K 15,000G6.3 CN-TG100-K WR-TG100-K F
4.50 2.44 60 Spin Tru B30-10TG450-KB 30,000G2.5 CN-TG100-K WR-TG100-K D
