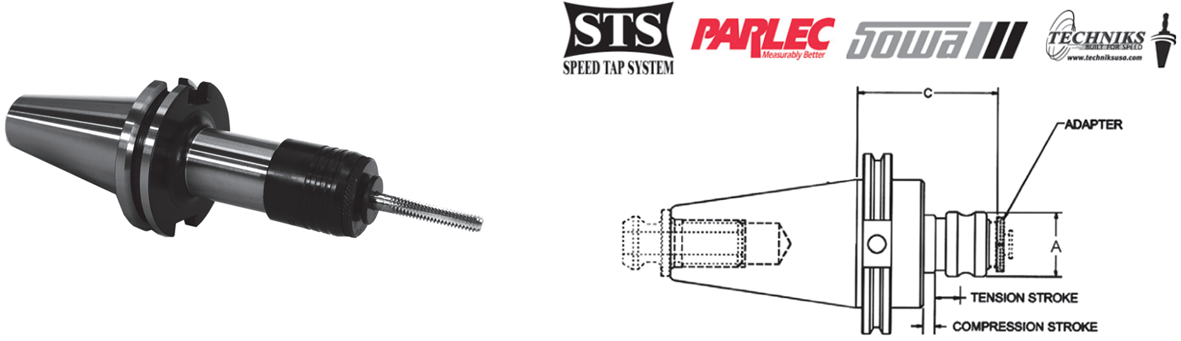

BT 40 Taper Quick Change Tap Holders

BT TAPER TAP HOLDERS
Tension / Compression and Rigid Tapping

For use with Industry Standard Quick-Change Tap Collets
Available for tension/compression or rigid tapping

To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)

BT 40 TAPER
Adapter Size	Capacity	C Proj	Comp	Tension	A Dia	Brand	Part Number	Code
TENSION/COMPRESSION
1	#0 - 9/16" Hand, 1/16" & 1/8" NPT	2.650	0.295	0.295	1.417	STS	B40-10TA265-U	D
	#0 - 9/16" Hand, 1/16" & 1/8" NPT	4.080	0.250	0.560	1.390	Parlec	B40-10TA408-P	B
	#0 - 9/16" Hand, 1/8" NPT	3.800	0.290	0.290	1.430	Sowa	B40-10TA380-G	C
2	5/16" - 7/8" Hand, 1/4", 3/8" & 1/2" NPT	3.720	0.492	0.492	2.087	STS	B40-20TA372-U	D
2	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	4.500	0.490	0.490	2.090	Sowa	B40-20TA450-G	C
3	13/16"-1-3/8" Hand, 3/4"-1" NPT	6.450	0.787	0.787	3.070	STS	B40-30TA645-U	D
3	13/16" - 1 3/8" Hand, 1/2" - 1" NPT	7.500	0.790	0.790	3.070	Sowa	B40-30TA750-G	C
RIGID TAPPING
1	#0 - 9/16" Hand, 1/8" NPT	3.020	Rigid	Rigid	1.250	Sowa	B40-10FS302-G	C
2	5/16" - 7/8" Hand, 1/4" - 1/2" NPT	3.660	Rigid	Rigid	2.000	Sowa	B40-20FS366-GB	C
