NHT-200 Power Chuck

2-jaw and 3-jaw through-hole power chuck
(adapter included)
  • Gripping of round or irregular workpiece does not need to change the chuck.
  • The chucks are designed according to ASA B5.9 type A spindle.
  • The chucks are made from high grade alloy steel. All sliding surfaces are hardened and ground to increase running accuracy and longer service life.
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Through-Hole
(mm)
Plunger
Stroke
(mm)
Jaw stroke
(In Dia.)
(mm)
Max. Pull
Force
(kgf)
Max.
Gripping
Force
(kgf)
Max.
Operating
Pressure
(kgf / cm²)
Max.
Speed
(r.p.m.)
Weight
(kg)
Matching
Cylinder
Matching
Hard Jaw
Matching
Soft Jaw
SPEC Part Number Price Each
3 Jaw 2 Jaw 3 Jaw 2 Jaw 3 Jaw 2 Jaw
Ø52 16 7.4 2243 1495 5812 3875 17.2 12.1 3500 25.5 M1552 HJ06 HC08-1 NHT-208A5 Call or Email
Ø52 16 7.4 2243 1495 5812 3875 17.2 12.1 3500 24.7 M1552 HJ06 HC08-1 NHT-208A6 Call or Email

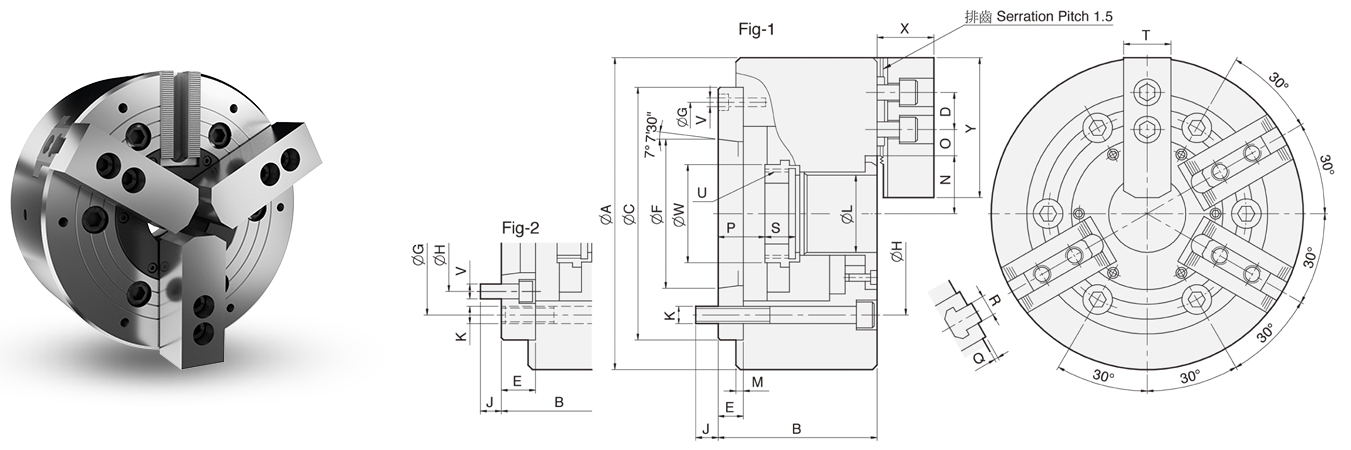

A B C
(H6)
D E F G H J K L M N
max.
O
max.
O
min.
P
max.
P
min.
Q R S T U
max.
V W X Y Reference DIM Part Number Price Each
210 113 170 20 23 82.563 133.35 104.78 13 6xM12 52 5 41.8 34 7.5 37.5 21.5 2 12 20.5 35 M60x2 6xM10 66 37 73 Fig-2 NHT-208A5 Call or Email
210 107 170 20 17 106.375 150 133.35 17 6xM12 52 5 41.8 34 7.5 31.5 15.5 2 12 20.5 35 M60x2 3xM6 66 37 73 Fig-1 NHT-208A6 Call or Email
