Okuma Tool Blocks

Okuma Tool Blocks

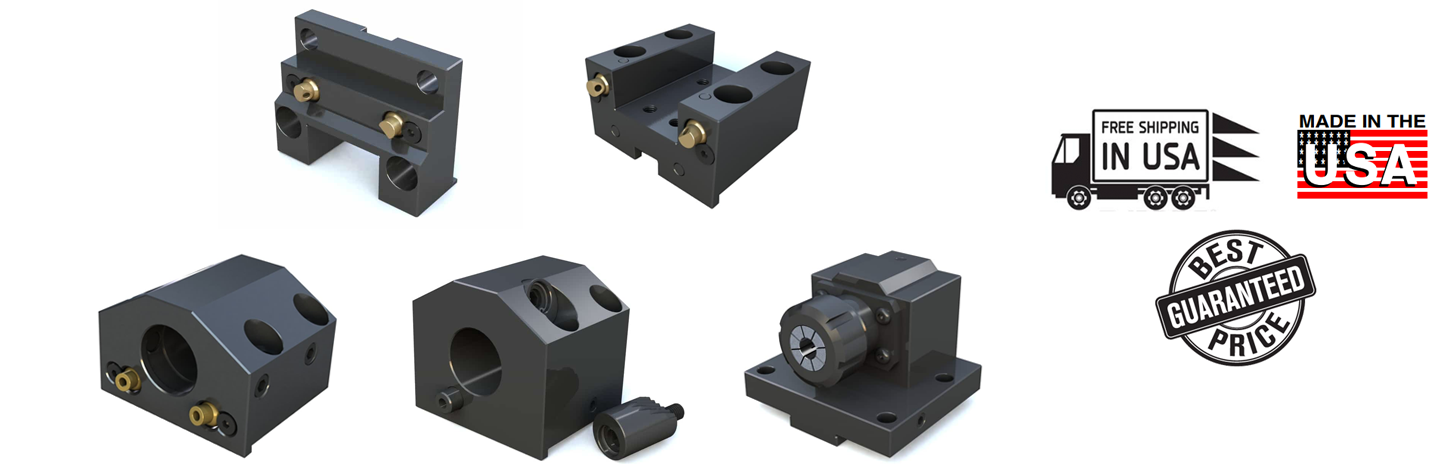

Tool Block Features
  • Bolt On Tool Blocks (Lathe Mounting Blocks & Block Tool Holders) for all types of Machines; New or Old.
  • Block Tool Holders have a specific Bolt Hole Pattern unique to each Machine Make and Model.
  • Select Block Tool Holders from list below. If you do not see your Machine Listed contact us at 888-988-8820. We sell Blocks for Every Machine.
  • Made From Alloy Steel; Precision Machined and Ground. High Pressure Coolant Nozzles.
  • Components Included: Wedges, Coolant Nozzles and Set Screws.
  • Internal Coolant Option available for all ID Tool Blocks; add “INT” to the Part Number.
  • Made in the USA.
New Items
  • VDI ID Block Tool Holders; convert your standard Bolt On Block Lathe to a VDI Turret.
  • ER 32 Collet ID Tool Blocks; offered in Standard Style and Recessed Style (Shown Below).
  • Need to Hold a Very Long Bar; we can make any ID Tool Block “Extended Style” – Increase your Gripping Power!
  • More ID Sizes Available – We make a variety of ID sizes Standard for All Blocks – Call for Listing & Prices!
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bolt Hole Pattern:
80mm x 45mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
Cadet, Captain 370, ESL8, ESL10, Heritage LB-15, LB15IIM, LB250T, LU25, LU15, Crown LB25, CAP470, L1420, LB4000EXBB/1500, L470, Genos250-V8, LB3000**, LU4000** 0.75" 1.25" A118-8420 DBL A118-8311 1" Sq. A118-8411 1" Sq. CALL
1" 1.25" A118-8425     CALL
1.25" 1.25" A118-8432     CALL
1.50" 1.25" A118-8435     CALL
2" 1.35" A118-8436     CALL
2.5" 1.625" A118-8437     CALL
2" 60mm **A118-8636X60CL     CALL
Bolt Hole Pattern:
85mm x 70mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LB35, LU35 1.5" 1.375" LB35-8435 LB35-8311 1" Sq. LB35-8411 1" Sq. CALL
2" 1.375" LB35-8436     CALL
2.5" 1.625" LB35-8437     CALL
Bolt Hole Pattern:
105mm x 70mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LB45, LU45 1.5" 1.625" LB45-8435 LB45-8311B 1.25" Sq. LB45-8411B 1.25" Sq. CALL
2" 1.625" LB45-8436     CALL
2.5" 1.625" LB45-8437     CALL
3" LB45-8475     CALL
2.5" 40mm LB45Wide-8437 Split     CALL
Bolt Hole Pattern:
73mm x 65mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LB2000, LB2500, LB3000, LB3000EX 0.625" 90mm LB3000-8416 LB3000-8311 1" Sq. LB3000-8411 1" Sq. CALL
0.75" 90mm LB3000-8420 LB3000-8311 DBL 1" Sq.   CALL
1" 90mm LB3000-8425     CALL
1.25" 90mm LB3000-8432     CALL
1.5" 90mm LB3000-8435     CALL
2" 90mm LB3000-8436     CALL
Bolt Hole Pattern:
80mm x 78mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LB4000, LB4000EX 1.25" 90mm LB4000-8432 LB4000-8311 1" Sq. LB4000-8411 1" Sq. CALL
1.5" 90mm LB4000-8435 LB4000-8311 DBL 1" Sq.   CALL
2" 90mm LB4000-8436     CALL
2.5" 90mm LB4000-8437     CALL
Bolt Hole Pattern:
70mm x 45mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LB-9, LB-10, GenosL250V12, ESL6 Heritage 0.75" 1" LB9-8420 LB9-8311A .75" Sq. LB9-8411A .75" Sq. CALL
1" 1" LB9-8425     CALL
1.25" 1" LB9-8432     CALL
1.5" 1" LB9-8435     CALL
Bolt Hole Pattern:
80mm x 45mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LC20 1.25" 1.25" LC20-8432 LC20-8311 1" Sq. LC20-8411 1" Sq. CALL
1.5" 1.25" LC20-8435     CALL
2" 1.25" LC20-8436     CALL
Bolt Hole Pattern:
85mm x 70mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LC30 2" 1.625" LC30-8436 LC30-8311/8411Combo OD Holder 1" Sq.   CALL
Bolt Hole Pattern:
105mm x 70mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LC40 2" 1.625" LC40-8436 LC40-8311B 1.25" Sq. LC40-8411B 1.25" Sq. CALL
2.5" 1.625" LC40-8437     CALL
Bolt Hole Pattern:
80mm x 120mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LC50 2.5" 1.75" LC50-8437 LC50-8311B 1.25" Sq LC50-8411B 1.25" Sq CALL
3" 2" LC50-8475     CALL
Bolt Hole Pattern:
160mm x 120mm
Machine Model
I.D. Center
Height
Part Number
Int. Coolant: Add -INT
OD Turning
Type I
OD Facing
Type II
Price
LFS12 1.25" 115mm LFS12-8432 LFS12-8311 1" Sq. LFS12-8411 1" Sq. CALL
