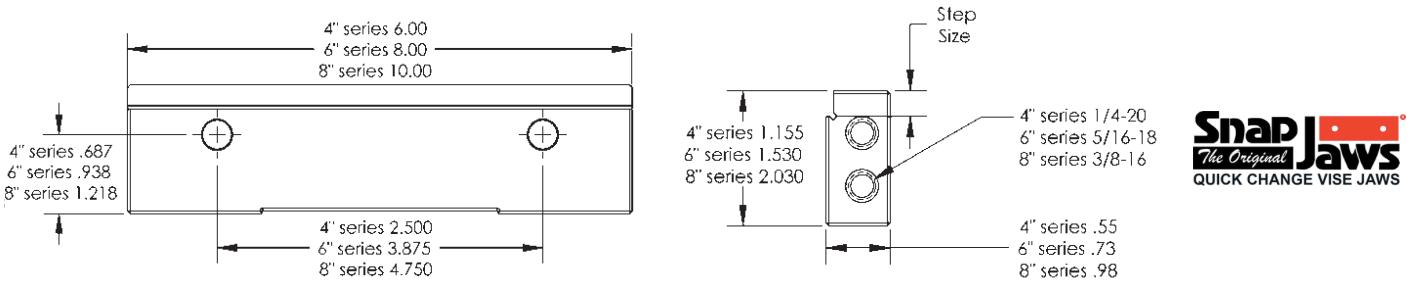

Snap Jaws - Extension Step Jaws
EXTRA CLAMPING AND SUPPORT AREA
Extension Jaws are 2 inches longer for increased support. Hardened, precision ground, and available in 10 different step sizes. Expand your vise capacity with extension step jaws. To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
| 4 Inch Series | 6 Inch Series | 8 Inch Series | |
| Step Size | Part Number | Part Number | Part Number |
| Standard NO Step | 4ESJ-400 | 6ESJ-600 | 8ESJ-800 |
| 0.100 | 4ESJ-100 | 6ESJ-100 | --- |
| 1/8 | 4ESJ-115 | 6ESJ-115 | --- |
| .150 | --- | --- | 8ESJ-150 |
| 3/16 | 4ESJ-177 | 6ESJ-177 | --- |
| 1/4 | 4ESJ-240 | 6ESJ-240 | 8ESJ-240 |
| 5/16 | 4ESJ-302 | 6ESJ-302 | 8ESJ-302 |
| 3/8 | 4ESJ-365 | 6ESJ-365 | 8ESJ-365 |
| 1/2 | 4ESJ-490 | 6ESJ-490 | 8ESJ-490 |
| 5/8 | 4ESJ-615 | 6ESJ-615 | 8ESJ-615 |
| 3/4 | 4ESJ-740 | 6ESJ-740 | 8ESJ-740 |
| 7/8 | 4ESJ-865 | 6ESJ-865 | 8ESJ-865 |
| 1.0 | 4ESJ-990 | 6ESJ-990 | 8ESJ-990 |
| 1-1/4 | --- | 6ESJ-124 | 8ESJ-124 |
| 1-1/2 | --- | --- | 8ESJ-149 |
