Type ZL Bushing (Long Series) - (Inch OD - Inch ID)
The most flexible Toolholder Bushing for all types of CNC Turning Centers, Turret Lathes and Chuckers. The Elongated Slot gives the user a complete interchangeability with all brands of equipment. The added Set Screws in the Head allow for increased rigidity. The bushings are hardened and precision ground concentric. Can also be used for Preset Tooling.
Type ZL Bushings Also Available In: Click Here
- Inch OD – Metric ID
- Metric OD – Inch ID
- Metric OD – Metric ID
| Bushing OD |
Length of Slot |
Head Thickness |
Length Under Head |
Bushing ID |
Part Number |

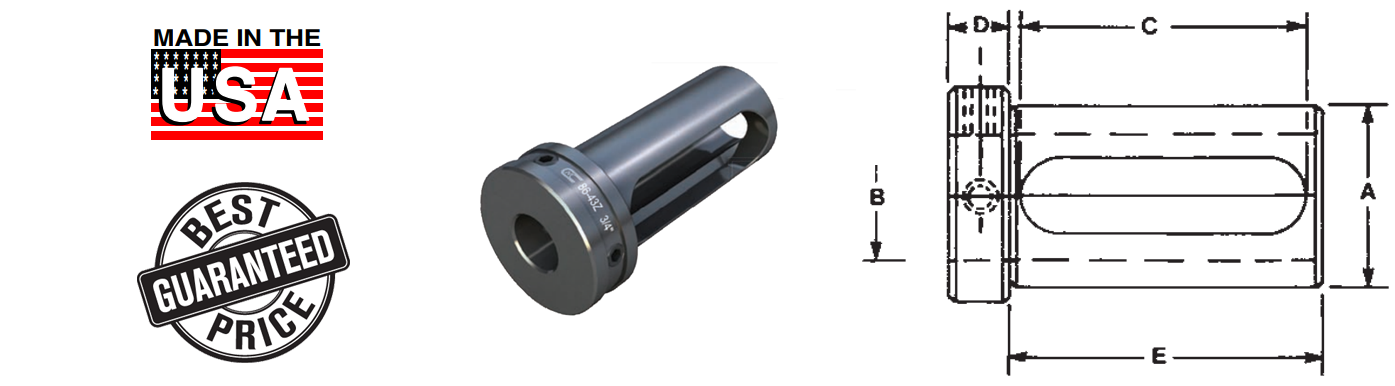

| A | C | D | E | B | |
| 1-1/4" | 3-1/8" | 5/8" | 3-3/4" | 3/8" | CNC 86-42ZL 3/8" |
| 1/2" | CNC 86-42ZL 1/2" | ||||
| 5/8" | CNC 86-42ZL 5/8" | ||||
| 3/4" | CNC 86-42ZL 3/4" | ||||
| 7/8" | CNC 86-42ZL 7/8" | ||||
| 1" | CNC 86-42ZL 1" | ||||
| 1-1/2" | 3-5/8" | 3/4" | 4" | 3/8" | CNC 86-43ZL 3/8" |
| 1/2" | CNC 86-43ZL 1/2" | ||||
| 5/8" | CNC 86-43ZL 5/8" | ||||
| 3/4" | CNC 86-43ZL 3/4" | ||||
| 7/8" | CNC 86-43ZL 7/8" | ||||
| 1" | CNC 86-43ZL 1" | ||||
| 1-1/4" | CNC 86-43ZL 1-1/4" | ||||
| 1-3/4" | 3-7/8" | 3/4" | 4-1/4" | 1/2" | CNC 86-44ZL 1/2" |
| 5/8" | CNC 86-44ZL 5/8" | ||||
| 3/4" | CNC 86-44ZL 3/4" | ||||
| 7/8" | CNC 86-44ZL 7/8" | ||||
| 1" | CNC 86-44ZL 1" | ||||
| 1-1/4" | CNC 86-44ZL 1-1/4" | ||||
| 1-1/2" | CNC 86-44ZL 1-1/2" | ||||
| 2" | 4-1/8" | 3/4" | 4-1/2" | 1/2" | CNC 86-45ZL 1/2" |
| 5/8" | CNC 86-45ZL 5/8" | ||||
| 3/4" | CNC 86-45ZL 3/4" | ||||
| 7/8" | CNC 86-45ZL 7/8" | ||||
| 1" | CNC 86-45ZL 1" | ||||
| 1-1/4" | CNC 86-45ZL 1-1/4" | ||||
| 1-1/2" | CNC 86-45ZL 1-1/2" | ||||
| 1-3/4" | CNC 86-45ZL 1-3/4" | ||||
| 2-1/2" | 4-5/8" | 3/4" | 5" | 5/8" | CNC 86-46ZL 5/8" |
| 3/4" | CNC 86-46ZL 3/4" | ||||
| 7/8" | CNC 86-46ZL 7/8" | ||||
| 1" | CNC 86-46ZL 1" | ||||
| 1-1/4" | CNC 86-46ZL 1-1/4" | ||||
| 1-1/2" | CNC 86-46ZL 1-1/2" | ||||
| 1-3/4" | CNC 86-46ZL 1-3/4" | ||||
| 2" | CNC 86-46ZL 2" | ||||
| 2-1/4" | CNC 86-46ZL 2-1/4" | ||||
| 3" | 5-3/8" | 3/4" | 5-3/4" | 1" | CNC 86-47ZL 1" |
| 1-1/4" | CNC 86-47ZL 1-1/4" | ||||
| 1-1/2" | CNC 86-47ZL 1-1/2" | ||||
| 1-3/4" | CNC 86-47ZL 1-3/4" | ||||
| 2" | CNC 86-47ZL 2" | ||||
| 2-1/4" | CNC 86-47ZL 2-1/4" | ||||
| 2-1/2" | CNC 86-47ZL 2-1/2" | ||||
| 3-1/2" | 5-7/8" | 1" | 6-1/2" | 1-1/4" | CNC 86-48ZL 1-1/4" |
| 1-1/2" | CNC 86-48ZL 1-1/2" | ||||
| 1-3/4" | CNC 86-48ZL 1-3/4" | ||||
| 2" | CNC 86-48ZL 2" | ||||
| 2-1/4" | CNC 86-48ZL 2-1/4" | ||||
| 2-1/2" | CNC 86-48ZL 2-1/2" | ||||
| 3" | CNC 86-48ZL 3" | ||||
| 4" | 7-1/8" | 1" | 7-1/2" | 1-1/2" | CNC 86-49ZL 1-1/2" |
| 1-3/4" | CNC 86-49ZL 1-3/4" | ||||
| 2" | CNC 86-49ZL 2" | ||||
| 2-1/4" | CNC 86-49ZL 2-1/4" | ||||
| 2-1/2" | CNC 86-49ZL 2-1/2" | ||||
| 3" | CNC 86-49ZL 3" |
