VDI Chart For Your Machine

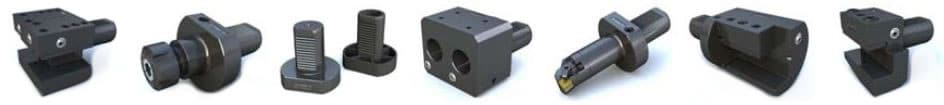

  • Exact Tooling carries a complete line of Static CNC Lathe VDI Toolholders made to DIN 69880 standards.
  • All VDI Tool Holders are made to ISO 9001/2000 specifications.
  • Available in All Metric VDI Shank Sizes: 16mm, 20mm, 25mm, 30mm, 40mm, 50mm, 60mm & 80mm.
  • Holds Standard Inch Size Tooling; Metric Available Upon Request.
  • Made in the USA.
  • VDI is a Quick Change Toolholding System.
  • VDI Provides a fast and accurate way of affixing tools to the Turret; Tool Changes are performed in seconds. Toolholders can be Preset. A Cam Operated Clamping System.
  • Complete line of Live Tooling & Live Tooling Repair available. Contact Us for more info.
  • Nakamura Style VDI Also available.
Key Benefits
  • Guaranteed: Not to fail for one full year or we will replace it for Free!
  • Also Available in 16mm & 80mm VDI Shanks! Please note that the 80mm VDI Shank VDI Tool Holders are “Made to Order” – with a Delivery of 5 Weeks – these items are not returnable due to the Special nature of this VDI Shank size.
Machine Make & Model VDI Shank Size OD Holders
Part Number
Facing Holders
Part Number
ID Holders & Collet Chucks
Part Numbers
Haas SL10 30mm 22. 3025
24. 3025
26. 3025
28. 3025
32. 3025
34. 3025
51. 30xx (ID)
52. 30xx (ID)
53. 30xx (ID)
Haas SL 20, 30 & 40
Haas ST10
40mm 22. 4025
24. 4025
26. 4025
28. 4025
32. 4025
34. 4025
51. 40xx (ID)
52. 40xx (ID)
53. 40xx (ID)
Okuma LB15 40mm 21. 4025
23. 4025
25. 4025
27. 4025
31. 4025
33. 4025
52. 40xx (ID)
53. 40xx (ID)
Okuma LB35 50mm 22. 5032
24. 5032
26. 5032
28. 5032
32. 5032
34. 5032
51. 50xx (ID)
52. 50xx (ID)
54. 50xx (ID)
53. 50xx (ID)
Okuma LB45 60mm 22. 6032
26. 6032
28. 6032
32. 6032
34. 6032
51. 60xx (ID)
52. 60xx (ID)
53. 60xx (ID)
54. 60xx (ID)
Clausing 30mm 21. 3025
23. 3025
25. 3025
27. 3025
31. 3025
33. 3025
51. 30xx (ID)
52. 30xx (ID)
53. 30xx (ID)
Hardinge 40mm 21.4025
23.4025
25.4025
27.4025
31. 4025
33. 4025
51. 40xx (ID)
52. 40xx (ID)
53. 40xx (ID)
Daewoo Puma 30mm 21.3025
23.3025
25. 3025
27. 3025
31. 3025
33. 3025
51. 30xx (ID)
52. 30xx (ID)
53. 30xx (ID)
Monarch Predator 30mm 21. 3025
23. 3025
25. 3025
27. 3025
31. 3025
33. 3025
51. 30xx (ID)
52. 30xx (ID)
53. 30xx (ID)
