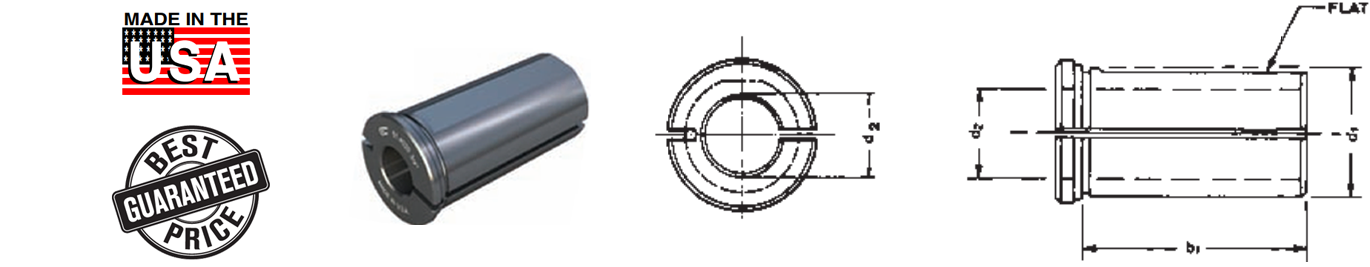

VDI Style "BV" Toolholder Bushings - (Inch ID)

VDI Style Toolholder Bushing
Type “BV”

VDI Style "BV" Toolholder Bushings Also Available In: Click Here

  • Metric OD – Metric ID
To order any of these items enter the Part Number into the search bar above. (This will take you to the product page where you can add the item to the shopping cart)
Bushing
OD
Length
Under Head
Bushing
ID
Part Number
d1 b1 d2
25mm 36mm 5/16" CNC86 61.2508
3/8" CNC86 61.2510
1/2" CNC86 61.2512
5/8" CNC86 61.2516
3/4" CNC86 61.2520
32mm 46mm 5/16" CNC86 61.3208
3/8" CNC86 61.3210
1/2" CNC86 61.3212
5/8" CNC86 61.3216
3/4" CNC86 61.3220
1" CNC86 61.3225
40mm 81mm 3/8" CNC86 61.4010
1/2" CNC86 61.4012
5/8" CNC86 61.4016
3/4" CNC86 61.4020
1" CNC86 61.4025
1-1/4" CNC86 61.4032
50mm 102mm 3/4" CNC86 61.5020
1" CNC86 61.5025
1-1/4" CNC86 61.5032
1-1/2" CNC86 61.5040
60mm 118mm 1" CNC86 61.6025
1-1/4" CNC86 61.6032
1-1/2" CNC86 61.6040
2" CNC86 61.6050
