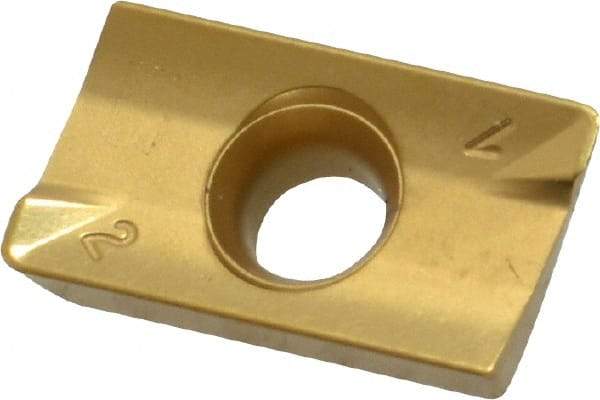

Everede Tool - APLT347 Grade CVM2 Carbide Milling Insert - TiN Finish, 3/16" Thick, 3/8" Inscribed Circle, 0.015" Corner Radius
Item #: 00053173
Brand: Everede Tool
Model #: APLT-347-CVM2
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | APLT |
| Insert Size | 347 |
| Material | Carbide |
| Material Grade | C2/C3 |
| Manufacturer's Grade | CVM2 |
| Coating | TiN |
| Width (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Decimal Inch) | 0.0150 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
