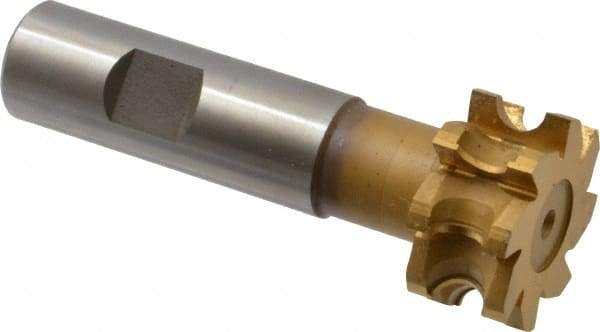

Whitney Tool Co. - 5/32" Radius, 5/16" Circle Diam, 1-5/16" Cutter Diam, 5/8" Cutting Width, Shank Connection, Concave Radius Cutter - 3/4" Shank Diam, 3-1/2" OAL, High Speed Steel, TiN Finish, Profile Ground, 8 Teeth, Weldon Flat
Item #: 00069930
Brand: Whitney Tool Co.
Model #: R1563CAVT
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Radius (Inch) | 5/32 |
| Circle Diameter (Decimal Inch) | 0.3125 |
| Diameter of Cutter (Inch) | 1-5/16 |
| Cutting Width (Inch) | 5/8 |
| Cutting Width (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 3-1/2 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Relief Style | Profile Ground |
| Number of Teeth | 8 |
| Weldon Flat | Yes |
