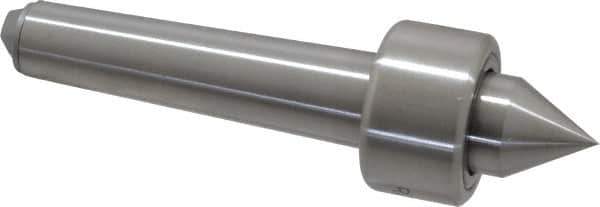

Riten - MT2 Taper Shank, 1-1/4" Head Diam 1,500 Lb Capacity Live Center - 1,000 Max RPM, 3/4" Head Length, 3/4" Point Diam, 13/16" Point Len, 400 Lb Max Workpc, Standard Point
Item #: 00093427
Brand: Riten
Model #: 12102
Exact Tooling IR#: 04
Features and Benefits
Standard points are used for a variety of applications including turning and grinding.
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | MT2 |
| Maximum Workpiece Weight (Lb.) | 400.00 |
| Point Style | Standard |
| Point Diameter (Inch) | 3/4 |
| Point Diameter (Decimal Inch) | 0.7500 |
| Point Length (Inch) | 13/16 |
| Point Length (Decimal Inch) | 0.8125 |
| Accuracy (Decimal Inch) | 0.000000 |
| Load Capacity (Lb.) | 1500.00 |
| Head Diameter (Inch) | 1-1/4 |
| Head Length (Inch) | 3/4 |
| Gage Line Clearance (Inch) | 3/32 |
| Included Angle | 60.00 |
| Maximum RPM | 1000 |
| Material | Hardened Tool Steel |
| Carbide-Tipped | No |
