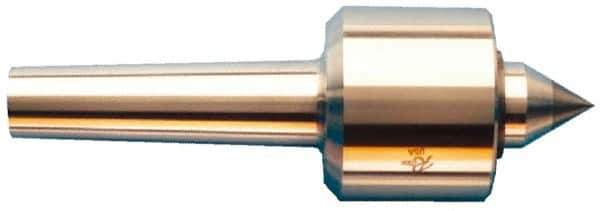

Riten - MT3 Taper Shank, 2-1/8" Head Diam 3,400 Lb Capacity Live Center - 6,000 Max RPM, 2" Head Length, 1" Point Diam, 1-3/8" Point Len, 1,100 Lb Max Workpc, Standard Point - Eagle Tool & Supply

Riten - MT3 Taper Shank, 2-1/8" Head Diam 3,400 Lb Capacity Live Center - 6,000 Max RPM, 2" Head Length, 1" Point Diam, 1-3/8" Point Len, 1,100 Lb Max Workpc, Standard Point


Item #: 00097832
Brand: Riten
Model #: 14603
Exact Tooling IR#: 04

Features and Benefits

Standard points are used for a variety of applications including turning and grinding.
Product Specifications
Shank Type Taper Shank
Taper Size MT3
Maximum Workpiece Weight (Lb.) 1100.00
Point Style Standard
Point Diameter (Inch) 1
Point Diameter (Decimal Inch) 1.0000
Point Length (Inch) 1-3/8
Point Length (Decimal Inch) 1.3750
Accuracy (Decimal Inch) 0.000000
Load Capacity (Lb.) 3400.00
Head Diameter (Inch) 2-1/8
Head Length (Inch) 2
Gage Line Clearance (Inch) 3/8
Included Angle 60.00
Bearing Type Double Bearing
Maximum RPM 6000
Material Hardened Tool Steel
Carbide-Tipped No
$676.38
