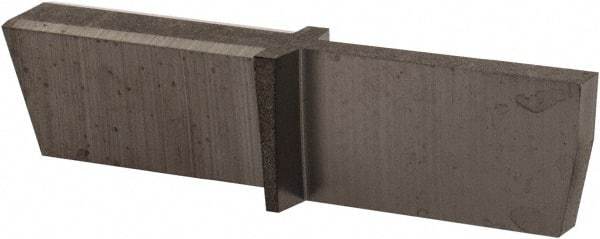

Thin Bit - 062LGPT Grade Dura-Max 5000, 1/16" Cutting Width Carbide Grooving Insert - 1/2" Max Depth of Cut, Neutral
Item #: 00282103
Brand: Thin Bit
Model #: LGPT062D5
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | LGPT |
| Insert Size | 062 |
| Material | Carbide |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Material Grade | C2/C3 |
| Manufacturer's Grade | Dura-Max 5000 |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.2400 |
| Lead Angle | 0 |
| Multi-Use Tool | No |
| Overall Length (Decimal Inch) | 0.7210 |
| Rake | Neutral |
| Overall Width (Decimal Inch) | 0.1450 |
