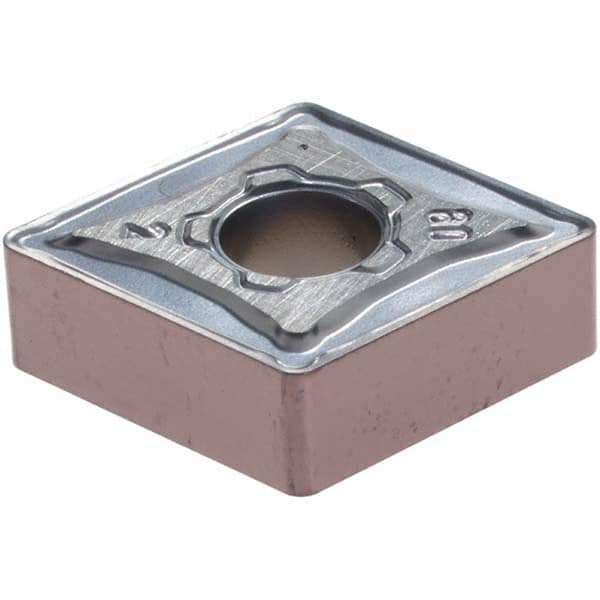

Turning Insert
Item #: 00345108
Brand: Iscar
Model #: 5569183
Product Specifications
| Insert Style | CNMG |
| Insert Shape Code | C |
| Insert Size Code | 432 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | M |
| Insert Material | Solid Carbide |
| Manufacturer Grade | IC804 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Included Angle | 80.0 |
| Series | Isoturn |
| Coating Process | PVD |
| Rake | Positive |
| Primary Workpiece Material | Stainless Steel |
| Primary Workpiece Material Code | S |
| Iso Code | ISO 13399 |
| Standards | ISO 13399 |
| Chip Breaker | M3M |
| Coating/Finish | AlTiN |
