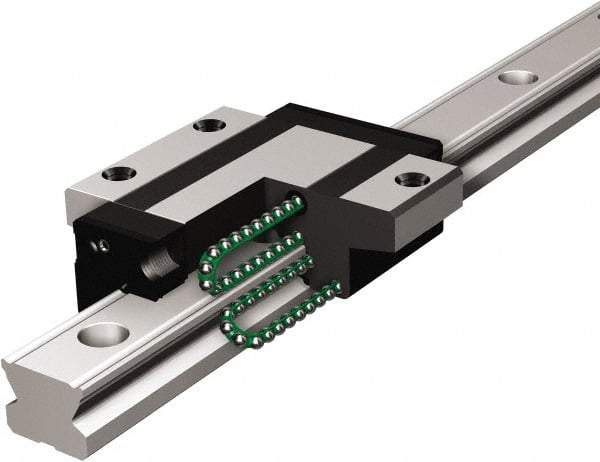

THK - 40.4mm L x 34mm W x 19.5mm H, 26mm Lateral Hole Spcg, High Radial Load SSR Block w/Caged Ball - 9.5mm Overhang, 9.1 Kn Dynamic Capacity, M4x7 Hole, 9.7 kn Static Load Rating, 24" High Assembly
Item #: 00372698
Brand: THK
Model #: SSR15XV1SSGKBLO
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | High Radial Load Type SSR Block w/Caged Ball |
| Block Length (mm) | 40.40 |
| Block Width (mm) | 34.00 |
| Block Height (mm) | 19.50 |
| Lateral Hole Spacing (mm) | 26.00 |
| Hole Size | M4x7 |
| Assembly Height (mm) | 24.00 |
| Block Overhang (mm) | 9.50 |
| Static Load Rating (kN) | 9.700 |
| Dynamic Load Capacity (kN) | 9.100 |
