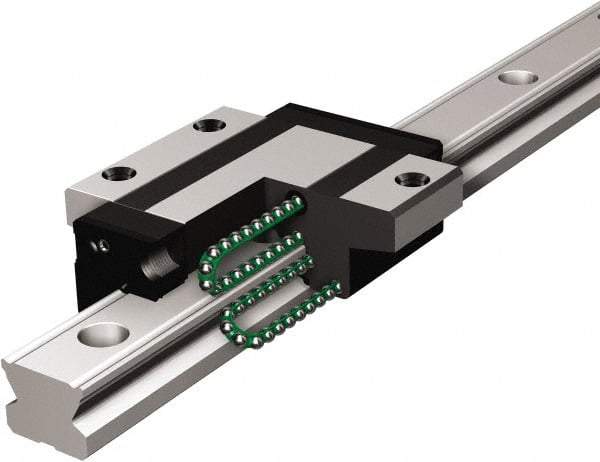

THK - 111mm L x 70mm W x 36.5mm H, 50mm Transverse Hole Spcg, 50mm Lateral Hole Spcg, High Radial Load SSR Block w/Caged Ball - 18mm Overhang, 64.6 Kn Dynamic Capacity, M8X12 Hole, 71.6 kn Static Load Rating, 48mm High Assembly
Item #: 00372821
Brand: THK
Model #: SSR35XW1SSGKBLO
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | High Radial Load Type SSR Block w/Caged Ball |
| Block Length (mm) | 111.00 |
| Block Width (mm) | 70.00 |
| Block Height (mm) | 36.50 |
| Transverse Hole Spacing (mm) | 50.00 |
| Lateral Hole Spacing (mm) | 50.00 |
| Hole Size | M8X12 |
| Assembly Height (mm) | 48.00 |
| Block Overhang (mm) | 18.00 |
| Static Load Rating (kN) | 71.600 |
| Dynamic Load Capacity (kN) | 64.600 |
