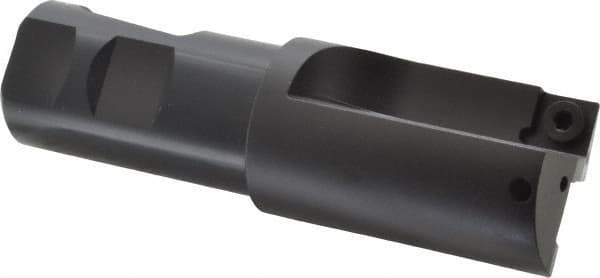

Kennametal - 1-1/2" Cut Diam, 11.94mm Max Depth of Cut, 1-1/4" Shank Diam, 4.78" OAL, Indexable Square Shoulder Centercutting End Mill - SPEB 422 Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 00691154
Brand: Kennametal
Model #: 1023606
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.7800 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 11.94 |
| Maximum Depth of Cut (Decimal Inch) | 0.4700 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | Centercutting End Mill |
| Cutter Style | KICR |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.5000 |
| Weldon Flat | Yes |
| Insert Compatibility | SPEB 422 |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Maximum RPM | 9000 |
