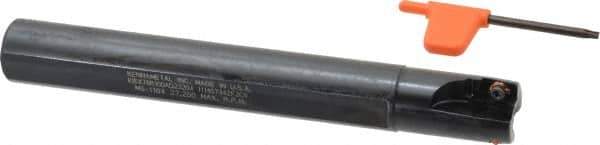

Kennametal - 1" Cut Diam, 1/2" Max Depth of Cut, 1" Shank Diam, 7.85" OAL, Indexable Square Shoulder End Mill - ADKT 1545.. Inserts, Cylindrical Shank, 0° Lead Angle
Item #: 00692129
Brand: Kennametal
Model #: 1592604
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Diameter (Inch) | 1 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 25.40 |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length/Projection (Decimal Inch) | 7.8500 |
| Lead Angle | 0 |
| Through Coolant | Noncoolant Through |
| Maximum Depth of Cut (Decimal Inch) | 0.5000 |
| Number of Cutter Inserts | 2 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | KIEX |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 1.7200 |
| Weldon Flat | No |
| Insert Compatibility | ADKT 1545.. |
| Shank Length (Decimal Inch) | 6.1299 |
| Shank Length (mm) | 155.70 |
| Maximum RPM | 27250 |
