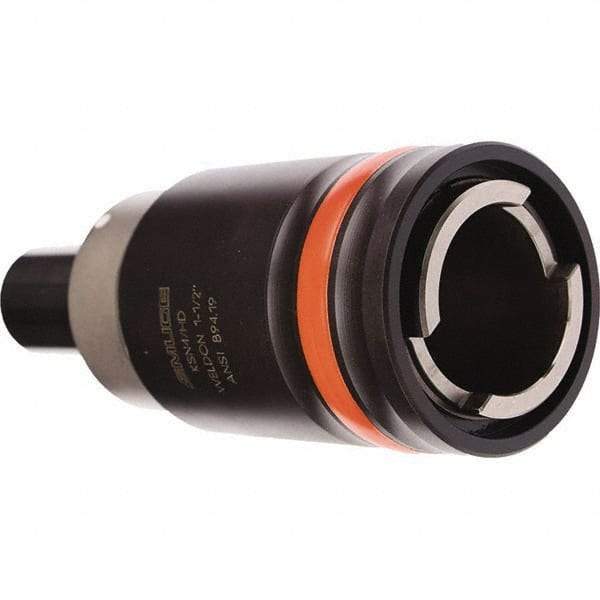

Emuge - 1-1/2" Straight Shank Diam Tension & Compression Tapping Chuck - M14 Min Tap Capacity, 5.7874" Projection, Size 4 Adapter, Quick Change, Through Coolant
Item #: 00791939
Brand: Emuge
Model #: F3104H40.1
Exact Tooling IR#: 04
Features and Benefits
Tension and compression tapping styles are engineered to automatically compensate for machine feed, pitch and tap rates. They feature a spring design that allows the tap to float during the cutting cycle without affecting the pitch.
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Tapping Style | Tension & Compression |
| Shank Type | Straight Shank |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Minimum Tap Capacity (mm) | M14 |
| Projection (Decimal Inch) | 5.7874 |
| Quick Change | Yes |
| Adapter Size | 4 |
| Holder Series | KSN4/HD |
| Nose Diameter (Decimal Inch) | 3.1496 |
| Compression (Decimal Inch) | 0.5906 |
| Overall Length (Decimal Inch) | 8.4764 |
| Through Coolant | Yes |
