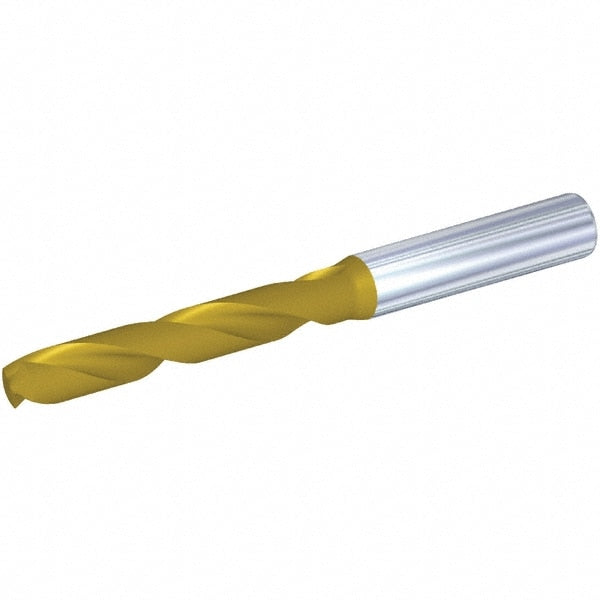

Jobber Drill: 5.41 mm Dia, 140 deg Point, Solid Carbide
Item #: 77370815
Brand: Kennametal
Model #: 4150674
Product Specifications
| Drill Bit Size (mm) | 5.41 |
| Drill Bit Size (Decimal Inch) | 0.2130 |
| Drill Bit Material | Solid Carbide |
| Drill Point Angle (Degrees) | 140 |
| Coating/Finish | TiN |
| Flute Type | Regular Spiral |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Number of Flutes | 2 |
| Overall Length (mm) | 82.00 |
| Overall Length (Decimal Inch) | 3.2283 |
| Flute Length (mm) | 44.00 |
| Flute Length (Decimal Inch) | 1.7323 |
| Flute By Diameter Ratio | 5xD |
| Shank Diameter (mm) | 6 |
| Maximum Drilling Depth (mm) | 35.00 |
| Shank Length (mm) | 36 |
| Drill Point Length (mm) | 0.90 |
| Shank Type | Straight |
| Drill Bit Size Range (Decimal Inch) | 0.2000 - 0.2500 |
| Drill Bit Size Range (mm) | 5.00 - 6.00 |
| UNSPSC Code | 23241634 |
| Country of Origin | VARIOUS |
