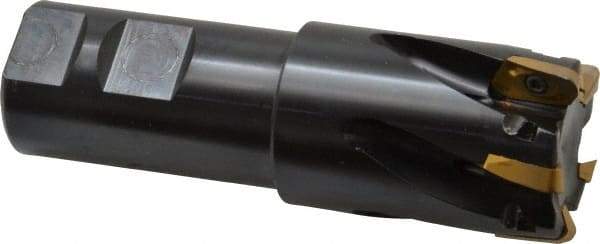

Kennametal - 1-1/2" Cut Diam, 14.1mm Max Depth of Cut, 1-1/4" Shank Diam, 114.56mm OAL, Indexable Square Shoulder End Mill - EC14.., EP14.. Inserts, Weldon Shank, 0° Lead Angle, Through Coolant
Item #: 01032531
Brand: Kennametal
Model #: 2624271
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Cutting Diameter (Inch) | 1-1/2 |
| Shank Type | Weldon |
| Shank Diameter (mm) | 31.75 |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (mm) | 114.56 |
| Overall Length/Projection (Decimal Inch) | 4.5100 |
| Lead Angle | 0 |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 14.10 |
| Maximum Depth of Cut (Decimal Inch) | 0.5550 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | Mill 1 |
| Number of Flutes | 5 |
| Head Length (mm) | 56.65 |
| Head Length (Decimal Inch) | 2.2300 |
| Weldon Flat | Yes |
| Insert Compatibility | EC14.., EP14.. |
| Shank Length (Decimal Inch) | 2.2799 |
| Shank Length (mm) | 57.91 |
| Maximum RPM | 29600 |
| Coolant Hole Diameter (mm) | 6.35 |
| Coolant Hole Diameter (Inch) | 1/4 |
| Coolant Hole Diameter (Decimal Inch) | 0.2500 |
