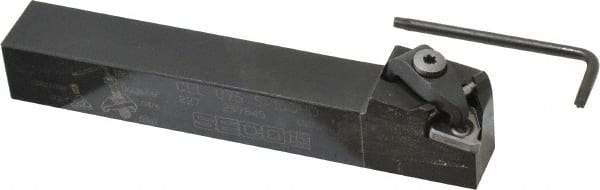

Seco - External Thread, Left Hand Cut, 3/4" Shank Width x 3/4" Shank Height Indexable Threading Toolholder - 5" OAL, 16EL Insert Compatibility, CE Toolholder, Series Snap Tap
Item #: 01127000
Brand: Seco
Model #: 21685
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | External |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Shank Width/Diameter (Inch) | 3/4 |
| Shank Height (Inch) | 3/4 |
| Shank Height (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 5 |
| Insert Compatibility | 16EL |
| Series | Snap Tap |
| Toolholder Style | CE |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 1.0000 |
| Head Length (Decimal Inch) | 0.9000 |
| Insert Inscribed Circle (Inch) | 3/8 |
