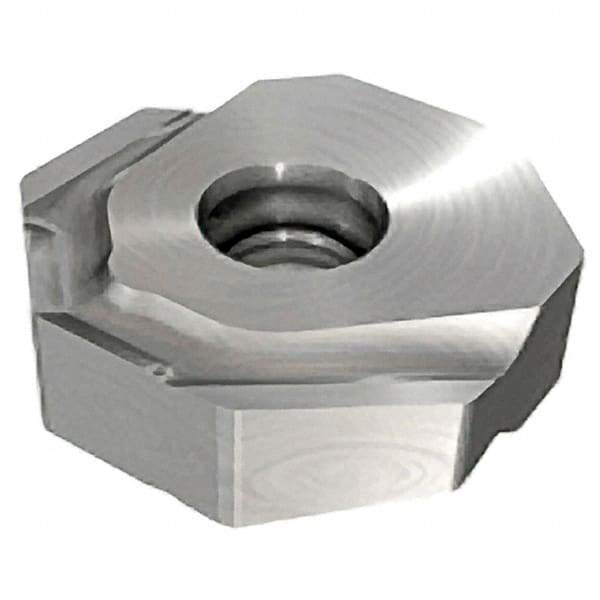

Iscar - ONHU0806AN W Grade IC910 Carbide Milling Insert - AlTiN Finish, 0.2362" Thick, 0.7992" Inscribed Circle, 0.5mm Corner Radius
Item #: 01161017
Brand: Iscar
Model #: 5604739
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ONHU |
| Insert Size | 0806AN |
| Material | Carbide |
| Material Grade | C2/C3/C6 |
| Manufacturer's Grade | IC910 |
| Coating | AlTiN |
| Inscribed Circle (Decimal Inch) | 0.7992 |
| Thickness (Decimal Inch) | 0.2362 |
| Corner Radius (Decimal Inch) | 0.0197 |
| Corner Radius (mm) | 0.50 |
| Relief Angle | 0.000 |
| Coating Process | PVD |
| Included Angle | 135 |
| Shape | Octagon |
| Insert Hand | Neutral |
| Chipbreaker | W |
| ISO Number | ONHU 0806AN-N-W |
