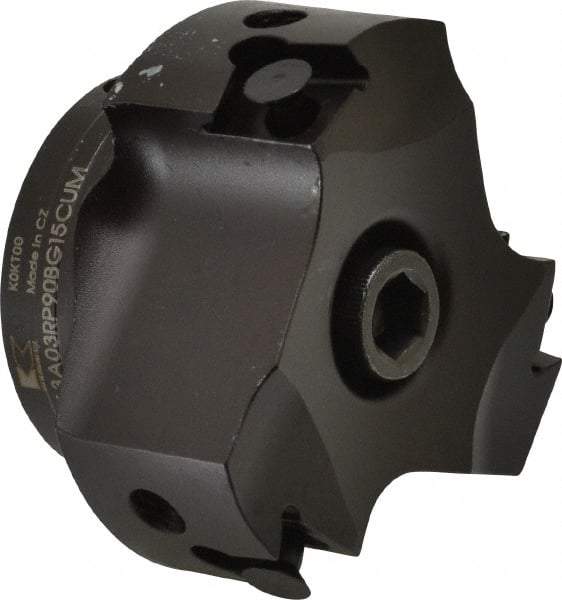

Kennametal - 3 Inserts, 2-1/2" Cut Diam, 3/4" Arbor Diam, 0.394" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 39.88mm High, BGHX 15L5... Insert Compatibility, Series Fix-Perfect
Item #: 01230481
Brand: Kennametal
Model #: 2235053
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 39.88 |
| Overall Height (Decimal Inch) | 1.5700 |
| Insert Compatibility | BGHX 15L5... |
| Series | Fix-Perfect |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3940 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Clamp |
| Number of Flutes | 3 |
| Cutting Rake Angle | 24 |
| Rake | Positive |
| Hub Diameter (mm) | 44.45 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Keyway Width (mm) | 8.31 |
| Keyway Width (Decimal Inch) | 0.3272 |
| Maximum Body Diameter (Decimal Inch) | 2.4250 |
| Maximum RPM | 10030 |
