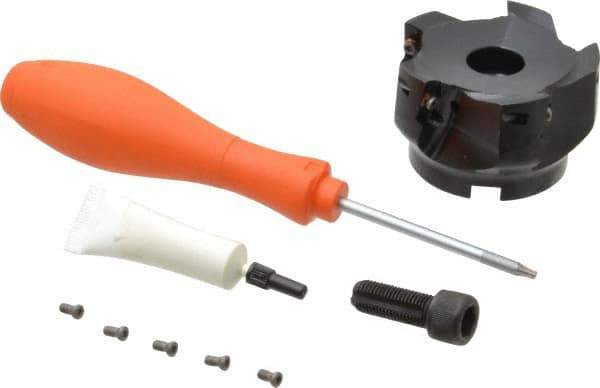

Kennametal - 5 Inserts, 2-1/2" Cut Diam, 3/4" Arbor Diam, 14.22mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, EC14.., EP14.. Insert Compatibility, Through Coolant, Series Mill 1-14
Item #: 01231034
Brand: Kennametal
Model #: 2624274
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.50 |
| Cutting Diameter (Inch) | 2-1/2 |
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (mm) | 19.05 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5750 |
| Insert Compatibility | EC14.., EP14.. |
| Series | Mill 1-14 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 14.22 |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 44.45 |
| Hub Diameter (Decimal Inch) | 1.7500 |
| Keyway Width (Decimal Inch) | 0.3300 |
| Maximum Body Diameter (Decimal Inch) | 2.4490 |
| Maximum RPM | 21700 |
| Coolant Hole Diameter (Decimal Inch) | 3.0000 |
