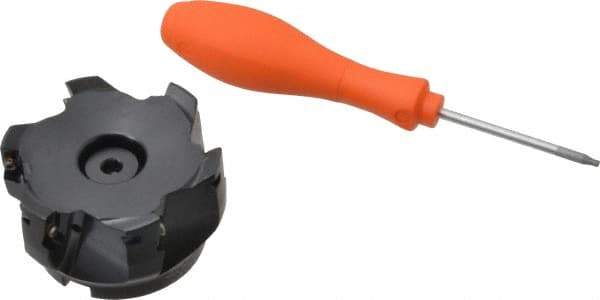

Kennametal - 6 Inserts, 3" Cut Diam, 1" Arbor Diam, 14.22mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, EC14.., EP14.. Insert Compatibility, Through Coolant, Series Mill 1-14
Item #: 01231067
Brand: Kennametal
Model #: 2624277
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Inch) | 3 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Inch) | 1 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 44.45 |
| Overall Height (Inch) | 1-3/4 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | EC14.., EP14.. |
| Series | Mill 1-14 |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 14.22 |
| Maximum Depth of Cut (Decimal Inch) | 0.5600 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Hub Diameter (mm) | 55.56 |
| Hub Diameter (Decimal Inch) | 2.1874 |
| Keyway Width (Decimal Inch) | 0.3900 |
| Maximum Body Diameter (Decimal Inch) | 2.9460 |
| Maximum RPM | 19600 |
| Coolant Hole Diameter (Decimal Inch) | 3.0000 |
