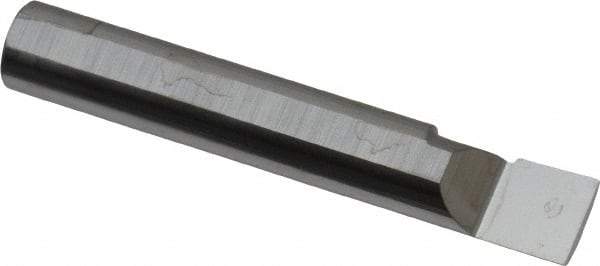

Scientific Cutting Tools - 0.31" Min Bore Diam, 1/2" Max Bore Depth, 5/16 Shank Diam, Radial Relief Boring Bar - Right Hand Cut, Solid Carbide, Uncoated
Item #: 01462852
Brand: Scientific Cutting Tools
Model #: BB314
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is used for high performace applications. It is extremely heat resistant and used on cast iron, nonferrous metals and other tough to machine materials.
Radial relief bars are used for removing material behind of the main cutting edge of the workpiece.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Minimum Bore Diameter (Decimal Inch) | 0.3100 |
| Maximum Bore Depth (Decimal Inch) | 0.5000 |
| Maximum Bore Depth (Inch) | 1/2 |
| Material | Solid Carbide |
| Material Grade | Submicron |
| Boring Bar Type | Radial Relief |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2 |
| Cutting Direction | Right Hand |
| Finish/Coating | Uncoated |
