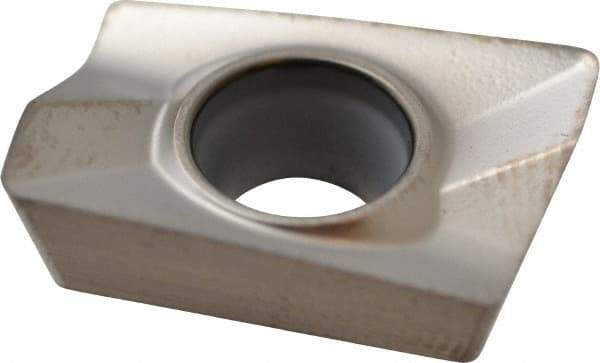

Kennametal - ADCT2328 LD Grade KC410M Carbide Milling Insert - TiB2 Finish, 0.1772" Thick, 0.8mm Corner Radius
Item #: 01654441
Brand: Kennametal
Model #: 2229381
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ADCT |
| Insert Size | 2328 |
| Material | Carbide |
| Manufacturer's Grade | KC410M |
| Coating | TiB2 |
| Width (Decimal Inch) | 0.3937 |
| Length (Decimal Inch) | 0.6039 |
| Thickness (Decimal Inch) | 0.1772 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Relief Angle | 15.000 |
| Rake Angle | 15 |
| Coating Process | PVD |
| Included Angle | 85 |
| Shape | Parallelogram |
| Insert Hand | Right Hand |
| Chipbreaker | LD |
| ISO Number | ADCT1545PDFRLDJ |
