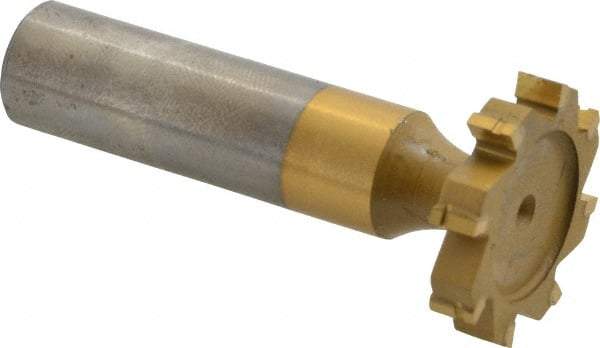

Made in USA - 1" Diam x 3/16" Face Width, Carbide-Tipped, 8 Teeth, Shank Connection Woodruff Keyseat Cutter - TiN Finish, 2-3/16" OAL x 1/2" Shank, Straight Teeth, ANSI 608, Old Standard 13
Item #: 01916121
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Titanium nitride (TiN) is a multi-purpose coating that increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Old Standard Number | 13 |
| American Standard Number (ANSI) | 608 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Cutting Width (Inch) | 3/16 |
| Cutting Width (Decimal Inch) | 0.1875 |
| Tooth Configuration | Straight |
| Material | Carbide-Tipped |
| Finish/Coating | TiN |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2-3/16 |
| Number of Teeth | 8 |
| Cutting Dia. Oversized for Resharpening | No |
| Material Grade | Micrograin |
| Cutting Width Tolerance (Decimal Inch) | +0.0000/-0.0005 |
| Weldon Flat | No |
