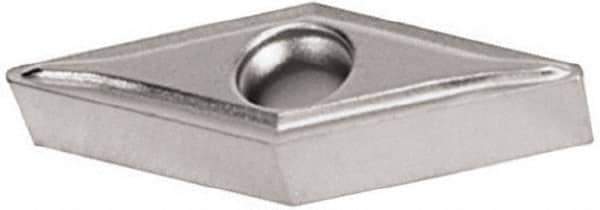

Kennametal - VBGT331 HP Grade K68 Carbide Turning Insert - Uncoated, 35° Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 02568970
Brand: Kennametal
Model #: 1162289
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VBGT |
| Insert Size | 331 |
| Material | Carbide |
| Length (mm) | 16.61 |
| Length (Decimal Inch) | 0.6539 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | K68 |
| Coating | Uncoated |
| Material Grade | C3 |
| Chip Breaker | HP |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 5 |
| Included Angle | 35 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Diamond |
