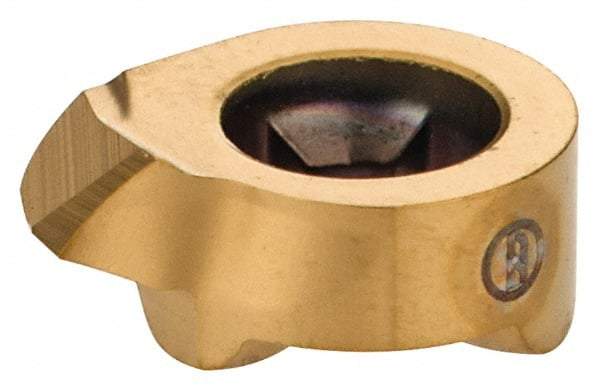

Iscar - GIQ11 Grade IC528, Internal Partial Profile 60° Threading Insert - 0.9mm & 28 TPI Int Pitch, Right Hand Insert, TiCN/TiN Finish, Carbide
Item #: 02649911
Brand: Iscar
Model #: 6402647
Exact Tooling IR#: 04
Features and Benefits
TiCN/TiN is a multi-layered coating designed to increase tool life. It is commonly used at high cutting speeds for smoothing and finishing of the workpiece.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIQ |
| Insert Size | 11 |
| Thread Type | Internal |
| Insert Hand | Right Hand |
| Thread Standard | Partial Profile 60 Degrees |
| Material Grade | C3/C7 |
| Manufacturer's Grade | IC528 |
| Internal Pitch/TPI | 0.90 mm; 28 TPI |
| Coating | TiCN/TiN |
| Material | Carbide |
| Coating Process | PVD |
| Corner Radius (mm) | 0.05 |
| Series | ChamGroove |
| Included Angle of Threading Tip | 60 |
| Length (Decimal Inch) | 0.4205 |
| Manufacturers Catalog Number | GIQR 11-MT-0.05 |
