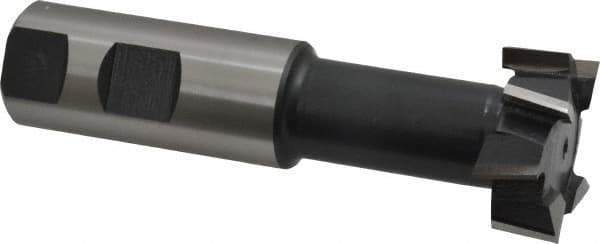

Interstate - 1-15/32" Cut Diam, 5/8" Cut Width, 25/32" Neck Diam, 1" Shank Diam, 4-7/16" OAL, High Speed Steel T-Slot Cutter - TiN Finish, 3/4" Bolt, 2-15/16" Shank Length, Staggered Teeth
Item #: 03000486
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
High speed steel (HSS) provides good wear resistance. It is commonly used for general purpose applications on both ferrous and nonferrous materials.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-15/32 |
| Cutting Width (Inch) | 5/8 |
| Neck Diameter (Inch) | 0.7813 |
| Shank Diameter (Inch) | 1 |
| Overall Length (Inch) | 4-7/16 |
| Material | High Speed Steel |
| Finish/Coating | TiN |
| Bolt Size (Inch) | 3/4 |
| Shank Length (Inch) | 2-15/16 |
| Tooth Configuration | Staggered |
