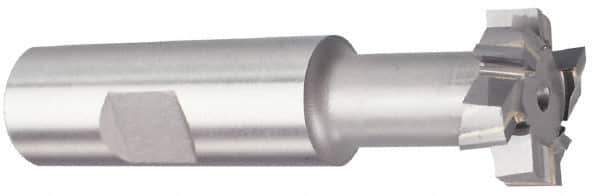

Made in USA - 2-7/32" Cut Diam, 1-3/32" Cut Width, 1-7/32" Neck Diam, 1-1/4" Shank Diam, 5-3/8" OAL, Carbide-Tipped T-Slot Cutter - Uncoated, 1-1/4" Bolt, 2-5/16" Shank Length, Staggered Teeth, 8 Teeth, Weldon Flat
Item #: 03001740
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on non-ferrous metals.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 2-7/32 |
| Cutting Width (Inch) | 1-3/32 |
| Neck Diameter (Inch) | 1.2188 |
| Shank Diameter (Inch) | 1-1/4 |
| Overall Length (Inch) | 5-3/8 |
| Material | Carbide-Tipped |
| Finish/Coating | Uncoated |
| Number of Teeth | 8 |
| Bolt Size (Inch) | 1-1/4 |
| Neck Length (Inch) | 1-31/32 |
| Shank Length (Inch) | 2-5/16 |
| Tooth Configuration | Staggered |
| Weldon Flat | Yes |
| Roughing | No |
