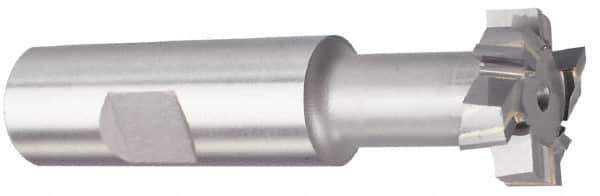

Made in USA - 25/32" Cut Diam, 21/64" Cut Width, 13/32" Neck Diam, 3/4" Shank Diam, 3-1/4" OAL, Carbide-Tipped T-Slot Cutter - TiN Finish, 3/8" Bolt, 2-1/16" Shank Length, Staggered Teeth, 6 Teeth, Weldon Flat
Item #: 03025947
Brand: Made in USA
Exact Tooling IR#: 04
Features and Benefits
Carbide tips cut faster than high speed steel. It is commonly used on ferrous and nonferrous materials including cast iron, steel and steel alloys.
Titanium Nitride (TiN) is a multi-purpose coating which increases chip flow in softer materials. The heat and hardness resistance allows the tool to run at higher speeds than uncoated tools.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 25/32 |
| Cutting Width (Inch) | 21/64 |
| Neck Diameter (Inch) | 0.4063 |
| Shank Diameter (Inch) | 3/4 |
| Overall Length (Inch) | 3-1/4 |
| Material | Carbide-Tipped |
| Finish/Coating | TiN |
| Number of Teeth | 6 |
| Bolt Size (Inch) | 3/8 |
| Neck Length (Inch) | 55/64 |
| Shank Length (Inch) | 2-1/16 |
| Tooth Configuration | Staggered |
| Weldon Flat | Yes |
| Roughing | No |
