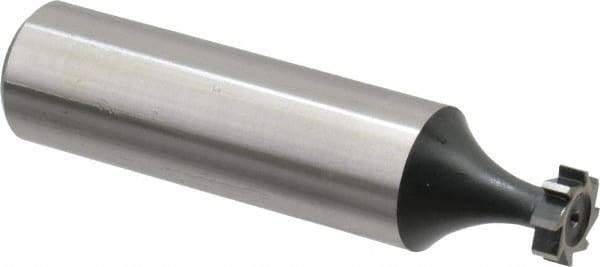

Interstate - 5/16" Diam x 3/32" Face Width, Cobalt, 6 Teeth, Shank Connection Woodruff Keyseat Cutter - Uncoated, 2-3/32" OAL x 1/2" Shank, Straight Teeth, ANSI 302-1/2, Old Standard 207
Item #: 03072071
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Straight tooth cutters are used for lighter and thinner cutting operations. They have more teeth than staggered cutters for a finer finish on the workpiece.
Cobalt is harder than high speed steel and provides better wear resistance. It is commonly used on high tensile alloys.
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds for general applications on nonferrous metals.
| Product Specifications | |
|---|---|
| Connection Type | Shank |
| Old Standard Number | 207 |
| American Standard Number (ANSI) | 302-1/2 |
| Cutting Diameter (Inch) | 5/16 |
| Cutting Diameter (Decimal Inch) | 0.3125 |
| Cutting Width (Inch) | 3/32 |
| Cutting Width (Decimal Inch) | 0.0938 |
| Tooth Configuration | Straight |
| Material | Cobalt |
| Finish/Coating | Uncoated |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 2.0938 |
| Number of Teeth | 6 |
| Material Grade | M42 |
