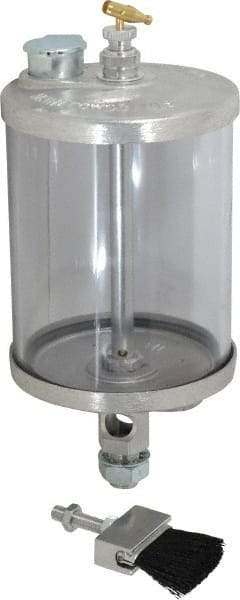

LDI Industries - 1 Outlet, Polymer Bowl, 0.95 L Manual-Adjustable Oil Reservoir - 5/8-18 UNF Outlet, 4-1/4" Diam x 9-3/8" High, 121.1 (Nylon Brush), 60°C (Polymer) Max
Item #: 03241056
Brand: LDI Industries
Model #: RDB309-N-4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Manual-Adjustable Oil Reservoir |
| Number of Outlets | 1 |
| Bowl Material | Polymer |
| Capacity Range | 32 oz. - 63.9 oz. |
| Mount Type | Direct Mount |
| Outlet Thread Size | 5/8-18 |
| Outlet Thread Type | UNF |
| Capacity (Qt.) | 1.00 |
| Capacity (L) | 0.95 |
| Diameter (mm) | 107.95 |
| Diameter (Inch) | 4-1/4 |
| Diameter (Decimal Inch) | 4.2500 |
| Height (mm) | 238.13 |
| Height (Inch) | 9-3/8 |
| Height (Decimal Inch) | 9.3750 |
| Maximum Operating Temperature (F) | 140 (Polymer); 250 (Nylon Brush) |
| Maximum Operating Temperature (C) | 121.1 (Nylon Brush); 60 (Polymer) |
| Components Material | Aluminum/Nylon |
