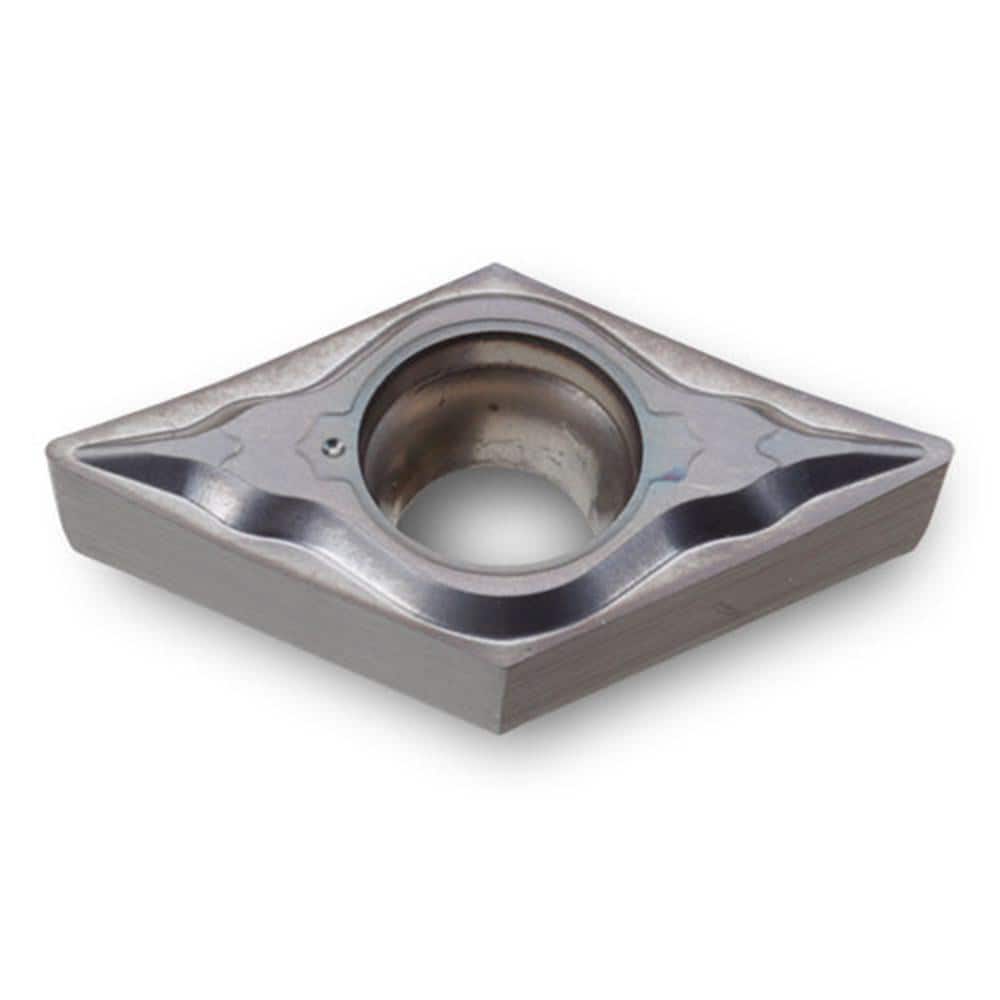

Turning Insert:  DCGT32.50.5SA TT9020,  Solid Carbide TiCN Finish,  Neutral,  0.4570″ Long,  3/8″ Inscribed Circle,  0.0080″ Corner Radius,  55.0 &deg N/A Diamond,  Series  DCGT

Turning Insert: DCGT32.50.5SA TT9020, Solid Carbide TiCN Finish, Neutral, 0.4570″ Long, 3/8″ Inscribed Circle, 0.0080″ Corner Radius, 55.0 ° N/A Diamond, Series DCGT


Item #: 03626777
Brand: Ingersoll Cutting Tools
Model #: 5519883

Product Specifications

Insert Style DCGT
Insert Shape Code D
Insert Size Code 32.50.5
Insert Shape Diamond
Clearance Code C
Tolerance Code G
Insert Material Solid Carbide
Manufacturer Grade TT9020
Hole Diameter (Decimal Inch) 0.1730
Maximum Depth of Cut (Decimal Inch) 0.1000
Inscribed Circle (Inch) 3/8
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Width (Inch) 3/8
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1560
Corner Radius (Decimal Inch) 0.0080
Included Angle 55.0
Relief Angle 7
Series DCGT
Coating Process PVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.4570
Number Of Cutting Edges 2
Primary Workpiece Material Stainless Steel; Steel
Primary Workpiece Material Code P; M
Ansi Code DCGT32.50.5SATT9020
Iso Code DCGT11T302SA TT9020
Chip Breaker SA
Width (Decimal Inch - 4 Decimals) 0.3750
Coating/Finish TiCN
$26.25
