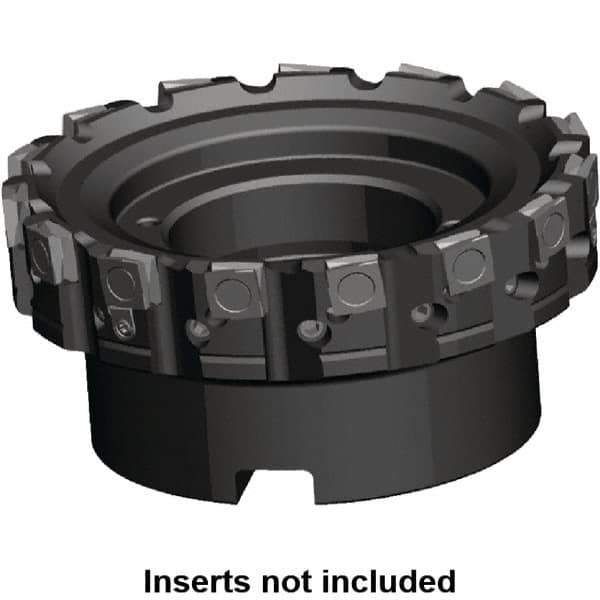

Kennametal - 4 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 6mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 43mm High, SPHX 1205... Insert Compatibility, Series Fix-Perfect
Item #: 03641909
Brand: Kennametal
Model #: 1503007
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 43.00 |
| Overall Height (Decimal Inch) | 1.6929 |
| Insert Compatibility | SPHX 1205... |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 6.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2362 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Clamp |
| Cutter Style | CFP |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 41.00 |
| Hub Diameter (Decimal Inch) | 1.6142 |
| Maximum Body Diameter (Decimal Inch) | 1.9055 |
| Number of Adjustable Pockets | 0 |
| Maximum RPM | 6300 |
| Complete Insert Compatibility | SPHX 1205PC.R.. |
