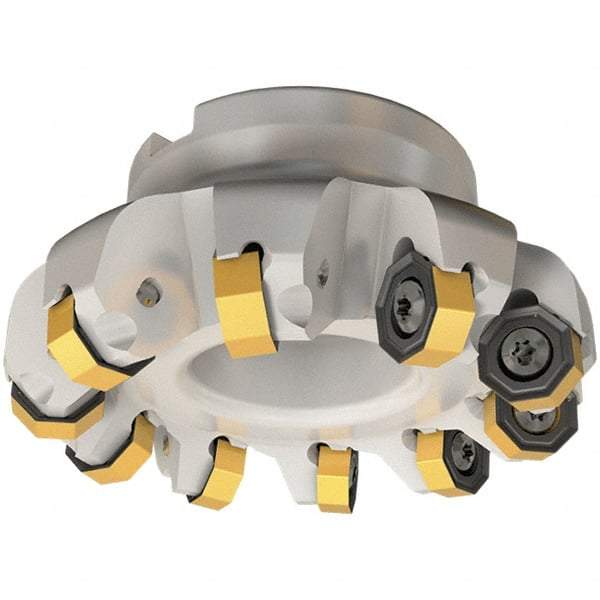

Iscar - 4.49" Cut Diam, 1-1/2" Arbor Hole, 0.138" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 12 Inserts, ON.. 05..\xB6OXMT 0507\xB6RXMT 1607\xB6S845 SN.U 13 Insert, Right Hand Cut, 12 Flutes, Through Coolant, Series Helido
Item #: 03655883
Brand: Iscar
Model #: 3105683
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.4090 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | ON.. 05..; OXMT 0507; RXMT 1607; S845 SN.U 13 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | SOF45 |
| Number of Flutes | 12 |
| Maximum Body Diameter (Decimal Inch) | 4.4090 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.1380 |
| Maximum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | ONHU 0505-W; ONHU/ONMU-05; OXMT 0507; RXMT 1607; S845 SNHU 1305-W; S845 SNMU/SNHU-13 |
