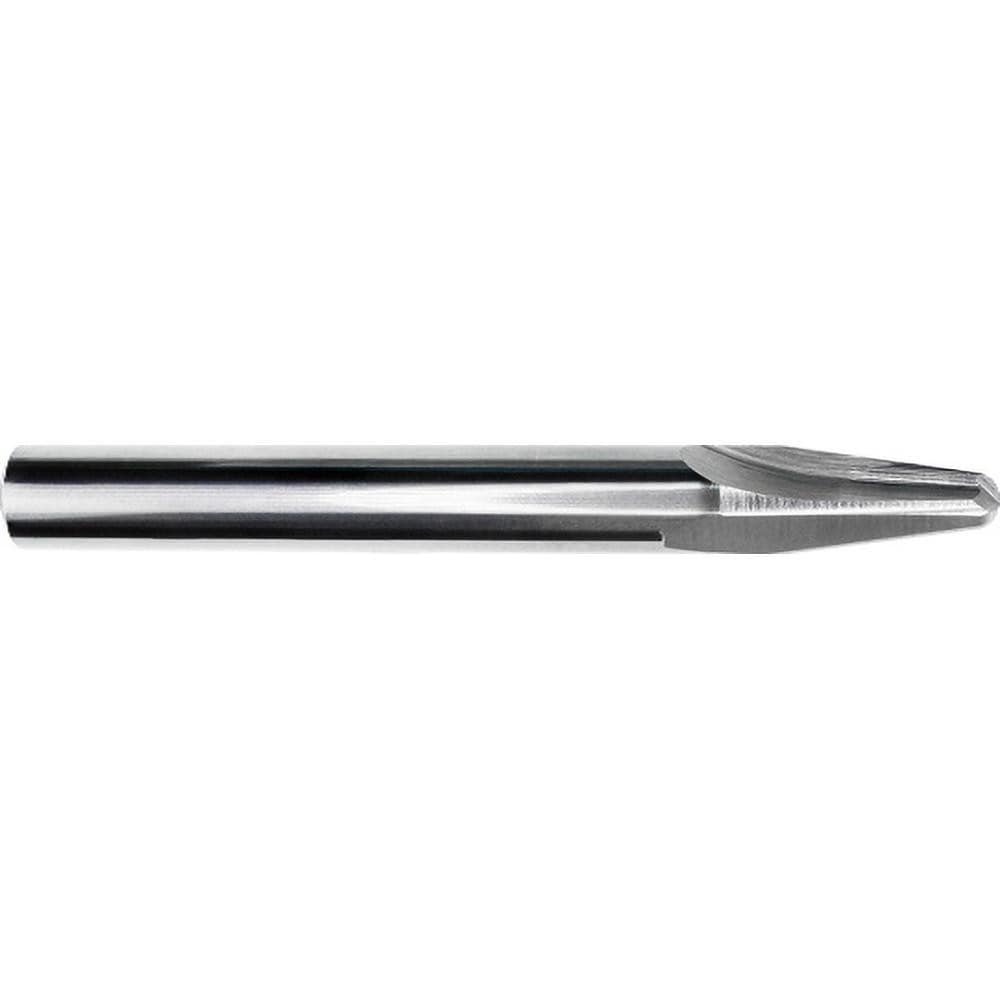

Tapered End Mill: 7 deg Angle per Side, 0.1860" Small Dia, 3/4" LOC, 1 Flute, Corner Radius End
Item #: 60230737
Brand: Internal Tool
Model #: 60-1425
Product Specifications
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 3/4 |
| Taper Angle Per Side | 7.00 |
| End Mill Material | Solid Carbide |
| End Shape | Corner Radius |
| Flute Type | Straight |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Nose Radius (Decimal Inch) | 0.0938 |
| Nose Radius (Inch) | 3/32 |
| Small End Diameter (Decimal Inch) | 0.1860 |
| Tip Diameter (Decimal Inch) | 0.1860 |
| Large End Diameter (Decimal Inch) | 0.3750 |
| Helix Angle | 0 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Series | 60 |
| Coating Classification | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Coolant Through | No |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 1 |
| Included Angle Degree | 14 |
| UNSPSC Code | 27112803 |
| Mill Diameter (Decimal Inch) | 0.3750 |
| Length of Cut (Inch) | 3/4 |
| Taper Angle Per Side | 7.00 |
| End Mill Material | Solid Carbide |
| End Shape | Corner Radius |
| Flute Type | Straight |
| Overall Length (Decimal Inch) | 2.5000 |
| Overall Length (Inch) | 2-1/2 |
| Centercutting | Yes |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Shank Diameter (Inch) | 3/8 |
| Nose Radius (Decimal Inch) | 0.0938 |
| Nose Radius (Inch) | 3/32 |
| Small End Diameter (Decimal Inch) | 0.1860 |
| Tip Diameter (Decimal Inch) | 0.1860 |
| Large End Diameter (Decimal Inch) | 0.3750 |
| Helix Angle | 0 |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel; Super Alloys & Titanium |
| Primary Workpiece Material Code | P; S; K; M |
| Material Grade | Micrograin |
| Flute Direction | Right Hand |
| Series | 60 |
| Coating Classification | Uncoated |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.7500 |
| Coolant Through | No |
| Coating/Finish | Bright/Uncoated |
| Number Of Flutes | 1 |
| Included Angle Degree | 14 |
| UNSPSC Code | 27112803 |
| MSC Part # | 60230737 |
| Mfr Part # | 60-1425 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
