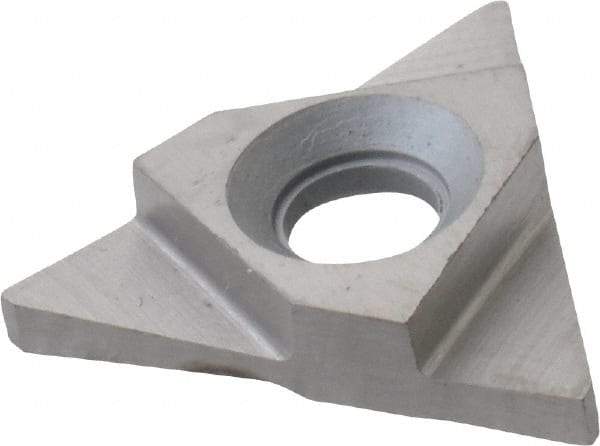

Interstate - 32TNMC Grade I55, 1/16" Cutting Width Carbide Grooving Insert - 0.075" Max Depth of Cut, Left Hand, Uncoated
Item #: 04106225
Brand: Interstate
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TNMC |
| Insert Size | 32 |
| Material | Carbide |
| Cutting Width (Inch) | 1/16 |
| Cutting Width (Decimal Inch) | 0.0625 |
| Maximum Depth of Cut (Decimal Inch) | 0.0750 |
| Material Grade | C5 |
| Manufacturer's Grade | I55 |
| Coating | Uncoated |
| Insert Hand | Left Hand |
| Relief Angle | 0 |
| Multi-Use Tool | No |
| Series | On-Edge |
| Rake | Neutral |
| Included Angle | 60 |
