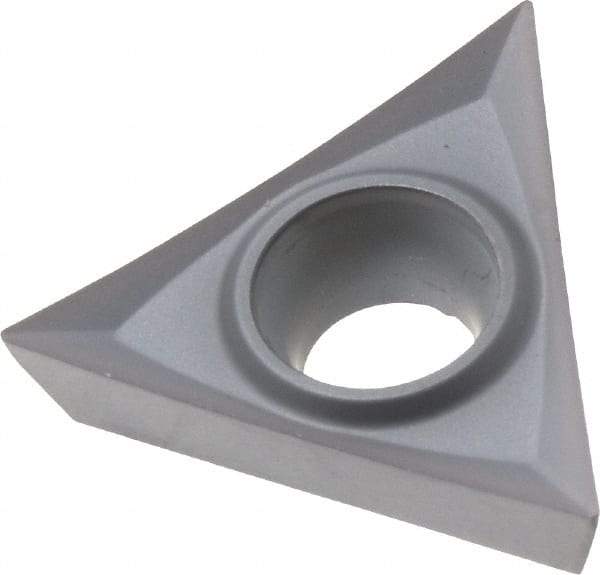

Kennametal - TPGT32.50.5 HP Grade KC5010 Carbide Turning Insert - TiAlN Finish, 60° Triangle, 3/8" Inscr Circle, 5/32" Thick, 0.0079" Corner Radius
Item #: 04217105
Brand: Kennametal
Model #: 1522850
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPGT |
| Insert Size | 32.50.5 |
| Material | Carbide |
| Length (mm) | 16.50 |
| Length (Decimal Inch) | 0.6496 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Thickness (Decimal Inch) | 0.1563 |
| Corner Radius (Decimal Inch) | 0.0079 |
| Manufacturer's Grade | KC5010 |
| Coating | TiAlN |
| Material Grade | C3/C4 |
| Chip Breaker | HP |
| Hole Diameter (mm) | 4.40 |
| Hole Diameter (Decimal Inch) | 0.1732 |
| Rake | Positive |
| Rake Angle | 15 |
| Relief Angle | 11 |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Hand | Neutral |
| Series | Screw-On |
| Maximum Depth of Cut (mm) | 1.25 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Insert Holding Method | Screw |
| Shape | Triangle |
