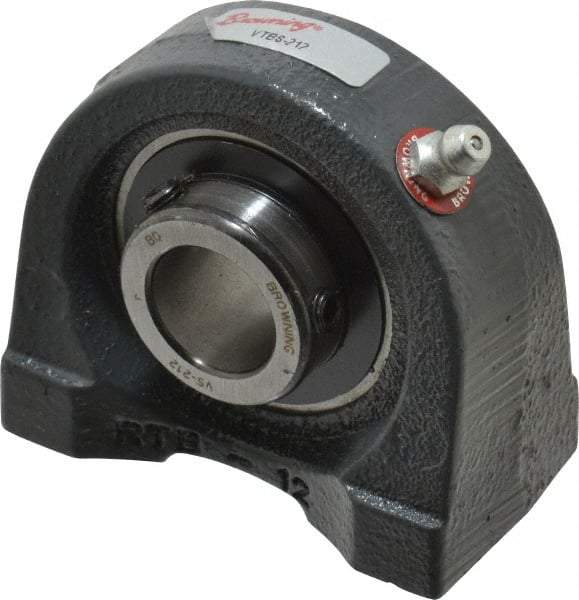

Browning - 3/4" ID, 2-7/8" OAL x 2-9/16" OAH Tapped Base - 1,444 Lb Static Cap, 2,611 Lb Dyn Cap, 2" Btw Mnt Hole Ctrs, 1-5/16" Base-to-Ctr Ht, Cast Iron
Item #: 04716213
Brand: Browning
Model #: VTBS-212
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Type | Tapped Base |
| Inside Diameter (Inch) | 3/4 |
| Width (Inch) | 1-1/2 |
| Overall Length (Inch) | 2-7/8 |
| Overall Height (Inch) | 2-9/16 |
| Static Load Capacity (Pounds) | 1444.00 |
| Dynamic Load Capacity (Pounds) | 2611 |
| Distance Between Mounting Hole Centers (Decimal Inch) | 2.0000 |
| Distance Between Mounting Hole Centers (Inch) | 2 |
| Material | Cast Iron |
| Distance Between Base And Center (Decimal Inch) | 1.3130 |
| Distance Between Base And Center (Inch) | 1-5/16 |
| Mount Thread | 3/8-16 |
| Insert Material | 52100 Steel |
| Lock Type | Set Screw |
| Bolt Size (Inch) | 3/8 |
