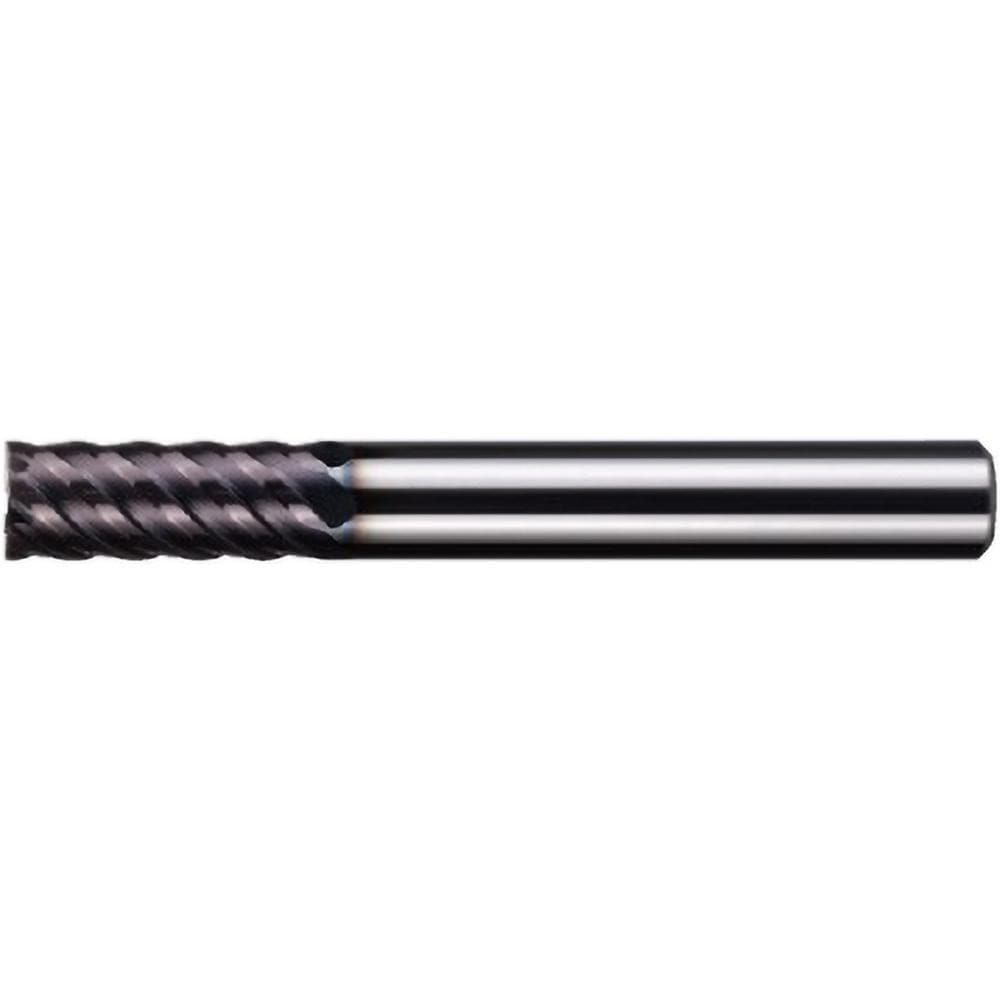

Square End Mill: 2.00 mm Dia, 7.00 mm LOC, 4 Flute, Solid Carbide
Item #: 11186632
Brand: Mitsubishi
Model #: 372656
Product Specifications
| Mill Diameter (mm) | 2.00 |
| Mill Diameter (Decimal Inch) | 0.0787 |
| Number Of Flutes | 4 |
| End Mill Material | Solid Carbide |
| Length of Cut (Decimal Inch) | 0.2756 |
| Length of Cut (mm) | 7.00 |
| Shank Diameter (mm) | 6.00 |
| Shank Diameter (Decimal Inch) | 0.2362 |
| Overall Length (mm) | 60.00 |
| Overall Length (Decimal Inch) | 2.3622 |
| Single Or Double End | Single |
| Coating/Finish Family | AlTiSiN |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coolant Through | No |
| Helix Angle | 30 |
| Primary Workpiece Material | Hardened Materials |
| Primary Workpiece Material Code | H |
| Secondary Workpiece Material | Steel |
| Secondary Workpiece Material Code | P |
| Coating/Finish | AlTiSiN |
| Variable Helix | No |
| Variable Index | No |
| Chipbreaker | No |
| Flute Type | Helical |
| Shank Type | Straight |
| Material Grade | Carbide |
| Length Type | Medium |
| Neck Length (Decimal Inch) | 0.2756 |
| Neck Length (mm) | 7.00 |
| Mill Diameter Tolerance | 0; -0.020 |
| Shank Diameter Tolerance | h6 |
| Series | VF Endmill VFMD |
| System Of Measurement | Metric |
| UNSPSC Code | 27112803 |
