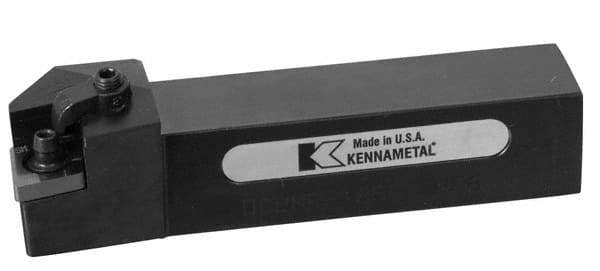

Kennametal - MCMN, Neutral Cut, 0° Lead Angle, 40mm Shank Height x 40mm Shank Width, Negative Rake Indexable Turning Toolholder - 200mm OAL, CN..1906.. Insert Compatibility, Series Kenloc
Item #: 05194592
Brand: Kennametal
Model #: 1102239
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Neutral |
| Toolholder Style | MCMN |
| Rake | Negative |
| Rake Angle | -7 |
| Series | Kenloc |
| Lead Angle | 0 |
| Shank Width (mm) | 40.00 |
| Shank Width (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Compatibility | CN..1906.. |
| Multi-Use Tool | No |
| Insert Holding Method | Screw or Clamp |
| Back of Bar to Cutting Edge (mm) | 20.00 |
| Head Length (mm) | 42.00 |
| Insert Inscribed Circle (Inch) | 3/4 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
| Toolholder Material | Steel |
