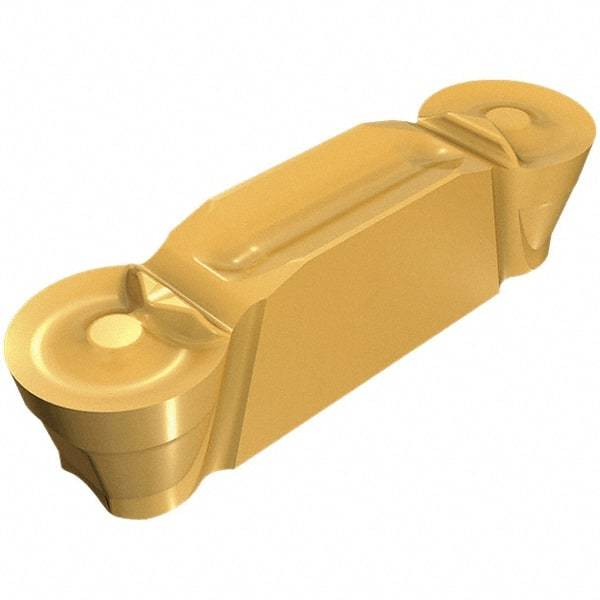

Iscar - 8040FGPA Grade IC20, 8mm Cutting Width Carbide Grooving Insert - 4mm Max Depth of Cut, Neutral, 4mm Corner Radius, Uncoated
Item #: 05412135
Brand: Iscar
Model #: 6496698
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FGPA |
| Insert Size | 8040 |
| Material | Carbide |
| Cutting Width (mm) | 8.00 |
| Cutting Width (Decimal Inch) | 0.3150 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Manufacturer's Grade | IC20 |
| Coating | Uncoated |
| Insert Hand | Neutral |
| Cutting Height (mm) | 6.30 |
| Cutting Height (Decimal Inch) | 0.2480 |
| Relief Angle | 10 |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning; Undercutting |
| Corner Radius (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.1575 |
| Overall Length (mm) | 29.80 |
| Overall Length (Decimal Inch) | 1.1732 |
| Series | Fix-Grip |
| Rake Angle | 15 |
| Rake | Positive |
| Overall Width (mm) | 8.00 |
| Overall Width (Decimal Inch) | 0.3150 |
